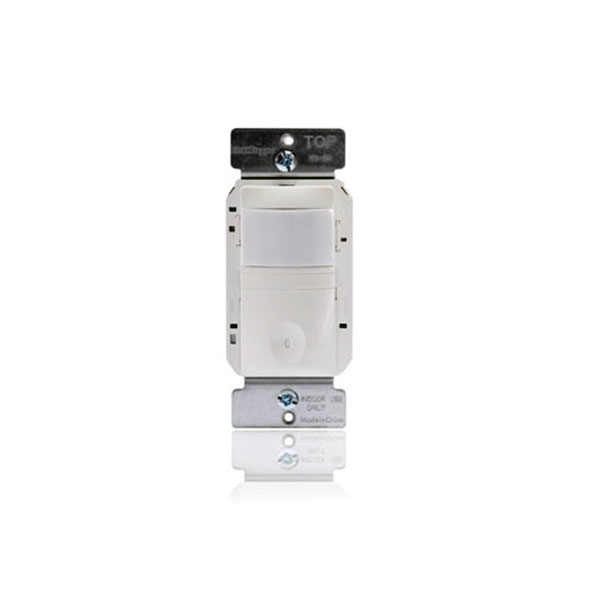

CS-50 – PIR WALL SWITCH VACANCY SENSOR

THE CS-50 IS IDEAL FOR MANY RESIDENTIAL AND LIGHT COMMERCIAL APPLICATIONS WHERE THE SWITCH LOCATION HAS AN UNOBSTRUCTED LINE OF SIGHT OF THE ROOM. IT DOES NOT REQUIRE A NEUTRAL WIRE IN THE SWITCH BOX AND MAY BE USED TO SWITCH LIGHTING OR FAN MOTORS. – BY WATTSTOPPER

Clear
  • Description
  • SPECS
  • MANUAL
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

This is the PIR wall switch vacancy sensor. The CS-50 Passive Infrared (PIR) Vacancy Sensor provides automatic shutoff for single-pole lighting control applications. It is engineered to comply with specific provisions of California’s Title 24-2013 energy code. The CS-50 operates as a manual-on sensor. Users must press the pushbutton to turn on lighting. The CS-50 employs PIR technology to sense the difference between the infrared energy from a person in motion and the background space. It keeps lighting on as long as motion is detected and provides automatic shutoff, following a user-selected time delay, when motion is no longer detected. Users may turn the lighting off manually. The CS-50 is shipped preset for a 30 minute time delay, and does not require any adjustment after installation. If desired, the time delay may be easily reduced to 25, 20, 15, 10 or 5 minutes or to 30 seconds. The time delay should be set relative to the anticipated duration of stay and level of activity in the room; 30 minutes for guest room and executive restroom, and 5 to 10 minutes for pantries and laundry rooms. Check out Wattstopper DLM products here.

  • Replaces single-pole switches
  • Adjustable time delay, 30 seconds to 30 minutes
  • If enabled, status indicator blinks when motion is detected
  • Low-profile styling
  • Choice of five decorator colors; lens is color-matched to device
  • Operates most common types of lighting or fan motors
  • Relay-based switching
  • No current leakage to load in off mode for safety
  • Compatible with decorator wall plates
  • CA Title 24 compliant

 WS-Cutsheet-CS-50-PIR-Wall-Switch-Vacancy-Sensor

  • 120 VAC, 60 Hz
  • Load ratings: 0-600W incandescent, LED, fluorescent, compact fluorescent (CFL), magnetic low voltage (MLV) or electronic low voltage (ELV) or 1/6 hp motor
  • Time delay settings: 30 seconds, 5, 10, 15, 20, 25, 30 minutes
  • PIR coverage: 180°, 600 ft2 (56 m2)
  • LED to indicate motion detection
  • 2.67” x 1.73” x 1.77” (68mm x 44mm x 45mm) L x W x D
  • Operating conditions: 32-131°F (0-55°C), 95% RH, noncondensing; for indoor use only
  • UL and cUL listed
  • Five-year warranty
