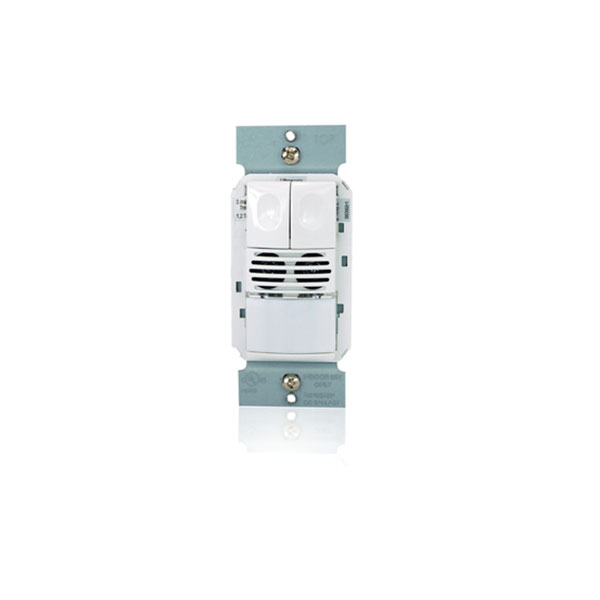

DSW-200 – DUAL TECHNOLOGY WALL SWITCH SENSOR W/ 2-RELAYS
THE DSW-200 HAS THE FLEXIBILITY FOR APPLICATIONS WHERE ONE TECHNOLOGY ALONE MAY NOT BE SUFFICIENT. IN ADDITION, ITS DUAL RELAYS ALLOW BI-LEVEL SWITCHING OR CONTROL OF TWO LOADS. APPLICATIONS INCLUDE SMALL AND EXECUTIVE OFFICES, SMALL AND MEDIUM CONFERENCE ROOMS AND LUNCH/BREAK ROOMS. THIS SENSOR IS ALSO A PERFECT CHOICE FOR ADA-COMPLIANT BUILDINGS DUE TO LOWER MOUNTING HEIGHT REQUIREMENTS – BY WATTSTOPPER
- Description
- SPECS
- Please visit literite.com for our new store!
- NON VERIFIED
Description
This is the dual technology wall switch sensor w/ 2-relays. The DSW-200 dual technology wall switch sensor turns lights ON and OFF based on occupancy and contains two relays for controlling two independent lighting loads or circuits. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies for high sensitivity to small and large movements. The DSW-200 replaces existing wall switches and fits a standard decorator wall plate.
Each of the DSW-200’s relays can control a separate lighting load. By default, when the PIR sensor detects occupancy, relay 1 turns ON automatically. Detection by either PIR or ultrasonic technology holds lights ON. When occupancy is no longer detected and the time delay elapses, lights automatically turn OFF. Dual ON/OFF buttons allow the user to turn on and off each of the loads manually. DIP switch settings allow for a variety of control options such as Auto-ON or Manual-ON for each relay, walk-through, and test mode. Check out Wattstopper DLM products here.
