EOSW-100 SERIES – RF WALL SWITCHES

RF WALL SWITCHES ARE IDEAL FOR RETROFIT APPLICATIONS WITH OR WITHOUT NEUTRAL WIRES WHERE THE SWITCH LOCATION IS NOT SUITABLE FOR SENSING OCCUPANCY, AND IT IS DIFFICULT TO INSTALL A WIRED CEILING SENSOR. PAIRED WITH WIRELESS OCCUPANCY SENSORS, EOSW-100 RF SWITCHES ARE PERFECT FOR RETROFITING SMALL CONFERENCE ROOMS, PRIVATE OFFICES, EXECUTIVES OFFICE, HALLWAYS AND STORAGE ROOMS – BY WATTSTOPPER

Clear
  • Description
  • SPECS
  • MANUAL
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

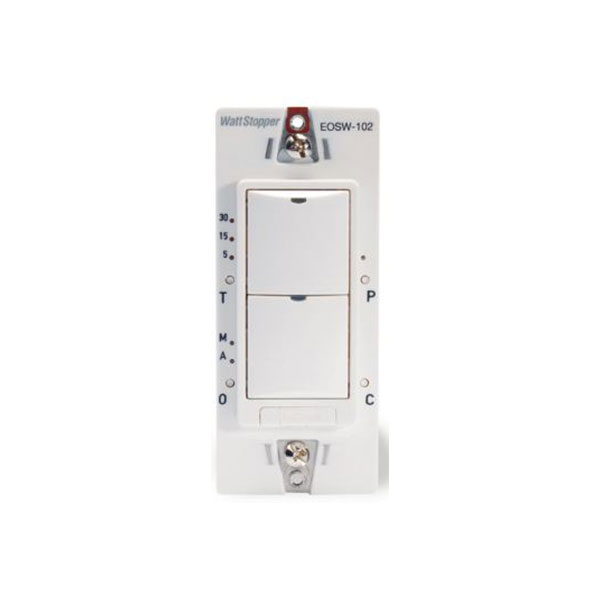

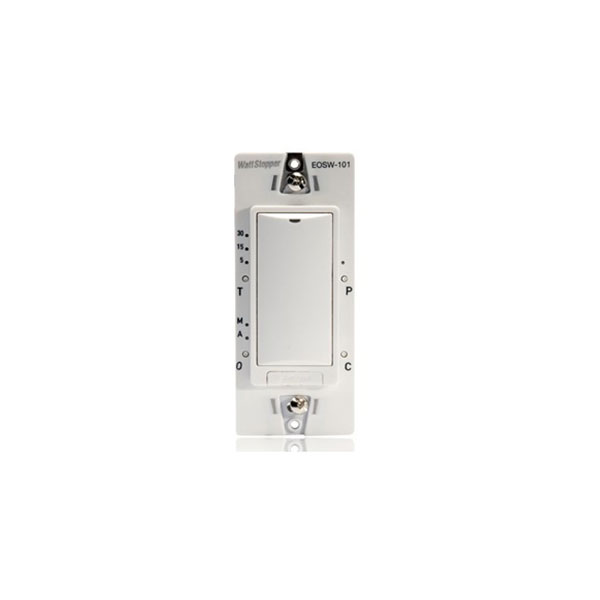

This is the RF wall switches. EOSW-100 Series RF Wall Switches work with EOPC-100 wireless occupancy sensors, and optional EORS-100 and EOHR-100 remote switches, to turn lights on and off based on occupancy. Models are available to control one or two switched legs in applications with or without neutral wires at the switch box. Both single and dual relay RF wall switches fit in single gang junction boxes for direct control of one or two loads. Each wall switch can be paired with one or more EOPC-100 wireless sensors for occupancy-based control. By default, single relay wall switches operate in manual-on/automatic-off mode. Dual relay switches are factory set for auto-on to 50%; relay 1 is automatic on/off, and relay 2 is manual-on/automatic-off. When occupancy is no longer detected and the time delay elapses, lights automatically turn off. These sequences of operation, and other default settings, may be changed using hidden configuration buttons. EOSW-100 RF dual relay switches allow for separate pairing of each controlled load (relay) to the integral switch buttons. Additionally, each load may be paired with selected wireless occupancy sensors and selected buttons on RF remote switches. The RF transmission range is approximately 50’ to 150’ depending on product placement. Check out Wattstopper DLM products here.

  • RF wall switches work with EOPC-100 wireless occupancy sensors
  • Zero-crossing for long relay life
  • Choice of manual-on or auto-on operation
  • EOSW-111 and EOSW-112 comply with 2011 NEC requirements
  • Selectable time delay
  • Test mode allows quick and easy set up
  • Compatible with decorator wall plates

 WS-Cutsheet-EOSW-100-Series-RF-Wall-Switches

  • 120/277VAC; 60 Hz
  • Load rating, per relay: @ 120VAC, 800W ballast, LED driver, ELV, MLV or tungsten, or 1/6hp motor (EOSW-10x, 15W minimum for load 1) @ 277VAC, 1200W ballast, LED driver, ELV or MLV (EOSW-10x, 30W minimum for load 1)
  • Relay Type: Form A latching relay
  • 1 or 2 load buttons, each with LED status indicator
  • Time Delays: 5, 15, 30 minutes (default 15 min.)
  • Memory: Stores up to 10 transmitter IDs
  • Frequency: 902MHz, integrated whip antenna
  • Operating conditions: for indoor use only; 5-95% RH, non-condensing
  • Operating temperature: EOSW-10x: 32-104°F (0-40°C); EOSW-11x: 32-131°F (0-55°C)
  • UL and cUL listed
  • FCC part 15 compliant
  • Five year warranty
