HW13 – HALLWAY OCCUPANCY SENSOR

HALLWAY OCCUPANCY SENSOR FROM SENSOR SWITCH.

This product is currently out of stock and unavailable.

  • Description
  • Specs
  • Manuals
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

Long, narrow PIR detection for control of hallway lighting.

  • 100% Digital PIR detection

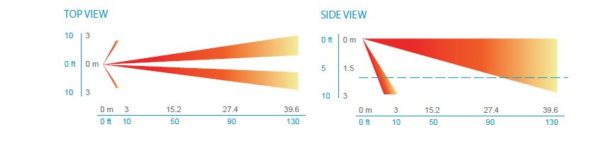

  • Coverage up to 130 ft. (39.62m)
  • Push button programmable
  • Adjustable time delays
  • Convenient test mode
  • No field calibration or sensitivity adjustments required
  • 100 hr. lamp burn-in timer
  • Recommended Power Pack: PP20





PDF BUTTONHW SPEC SHEET

Specifications:

  • Size:  3.0” H x 3.6” W x 1.75” D (7.62 cm x 9.14 cm x 4.45 cm)
  • Mounting: Directly to wall or to ceiling using WV BR bracket
  • Color: White
  • Maximum Load(per pole): 12-24 VAC/VDC
  • Current Draw: Standard, 4 mA w/ R option, 16mA
  • Recommended Power Pack: PP20





NON VERIFIED CONTENT
