WattStopper IDP-3050-A – ISOLÉ POWER STRIP W/ PERSONAL SENSOR

WattStopper IDP-3050-A – ISOLÉ POWER STRIP W/ PERSONAL SENSOR

THE IDP-3050 IS IDEAL FOR CONTROLLING TASK LIGHTING AND COMPUTER MONITORS. ADDITIONAL DEVICES FOR THE CONTROLLED OUTLETS INCLUDE SPACE HEATERS, FANS AND OTHER EQUIPMENT THAT CAN BE TURNED OFF DURING UNOCCUPIED PERIODS. DEVICES SUCH AS CPUS AND FAX MACHINES SHOULD BE PLUGGED INTO THE UNCONTROLLED OUTLETS. APPLICATIONS INCLUDE WORKSTATIONS, OPEN OFFICE CUBICLES, OFFICES AND ENGINEERING STATIONS – BY WATTSTOPPER

  • Description
  • SPECS
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

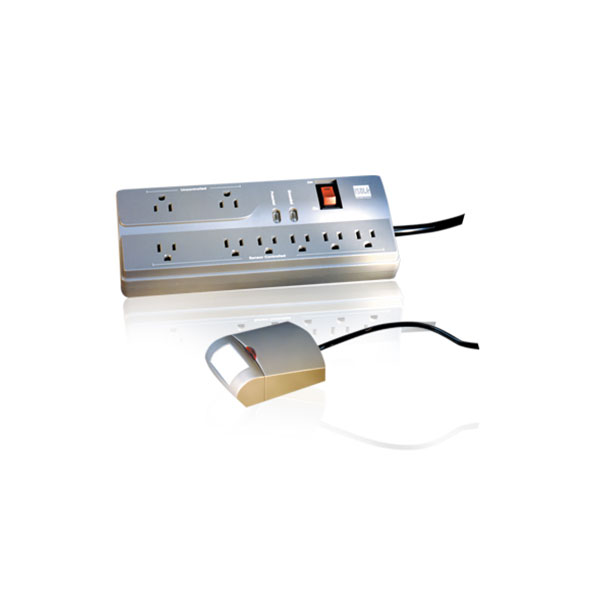

This is the Isolé power strip w/ personal sensor. The Isolé IDP-3050 is an energy-saving control system that provides maximum surge and noise suppression while keeping plug load equipment off when there is no occupancy. It consists of an eight-outlet power strip and a personal occupancy sensor.

The IDP-3050 turns plug load devices on and off based on occupancy. The personal sensor connects to the eight-outlet power strip with the attached cable. The power strip contains six outlets controlled by occupancy and two outlets that are uncontrolled. The IDP-3050 automatically turns all controlled devices on when the workspace is occupied, and off when the workspace has been unoccupied for the user-defined time delay. Uncontrolled devices remain on regardless of occupancy. Check out Wattstopper DLM products here.

  • Eight outlets; six controlled, two uncontrolled
  • Surge and noise suppression protects desktop equipment
  • Ground protected for safety; will not operate without a grounded outlet
  • Two LEDs to indicate: 1) correct wiring and grounding; 2) surge protection is functioning
  • Installation requires no hardwiring
  • Flat offset plug for wire management
  • One uncontrolled outlet and one controlled outlet are wall transformer-enabled
  • Plugs into a standard three-prong outlet
  • Uses latest passive infrared (PIR) technology to detect occupancy
  • User-adjustable time delay of 30 seconds to 30 minutes
  • Multi-level Fresnel lens for superior occupancy detection
  • 120° coverage, up to 300 square feet
  • ASIC technology reduces components and enhances reliability
  • Instantaneous response time

 WS-Cutsheet-Isole-IDP-3050-Plug-Load-Control

  • Electrical rating: 120VAC, 12A, 50/60 Hz
  • 12A dry contact relay
  • 6 ft. black cord
  • Transformer provides power to sensor
  • Mounts with screws or double-sided tape
  • UL 1449 3rd Edition rating: 600V
  • Circuit: High-energy, multistage hybrid
  • Noise filtration: 0–25db (94.38%)
  • Joule rating: 740 joules
  • Maximum surge amperage: 48,000 Amps
  • Protection modes: 500V L-N, 600V L-G, 600V N-G
  • Response time: instantaneous
  • Let-through voltage: 140V
  • Initial clamping voltage: 200V
  • UL and cUL listed
  • Five year warranty

Personal Sensor

  • 9 ft. connector cable
  • Supply voltage: 12VDC
  • 30 sec. to 30 min. Time Delay via Trim Pot (30 min. default)
  • UL and cUL listed
  • Five year warranty
