LMDW-100 SERIES – DUAL TECHNOLOGY WALL SWITCH

SENSOR WITH DUAL TECHNOLOGY – APPLICATIONS INCLUDE SMALL PRIVATE OFFICES, EXECUTIVE OFFICES, SMALL AND MEDIUM CONFERENCE ROOMS AND LUNCH/BREAK ROOMS WHERE ONE TECHNOLOGY ALONE MAY NOT BE SUFFICIENT – BY WATTSTOPPER

Clear
  • Description
  • Specs
  • Manuals
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

This is the dual technology wall switch. LMDW-100 Series Digital Dual Technology Wall Switch Occupancy Sensors use PIR and ultrasonic technology to detect occupancy for energy-efficient control of lighting and plug loads. They also include one or two switch buttons for manual control of selected loads, and are part of a Wattstopper Digital Lighting Management (DLM) system. Check out Wattstopper DLM products here.

FEATURES:

  • Plug n’ Go™ automatic configuration for quick installation and maximum energy savings
  • Push n’ Learn™ functionality for customization without the need for tools or a PC
  • Infrared (IR) transceiver for wireless configuration and control

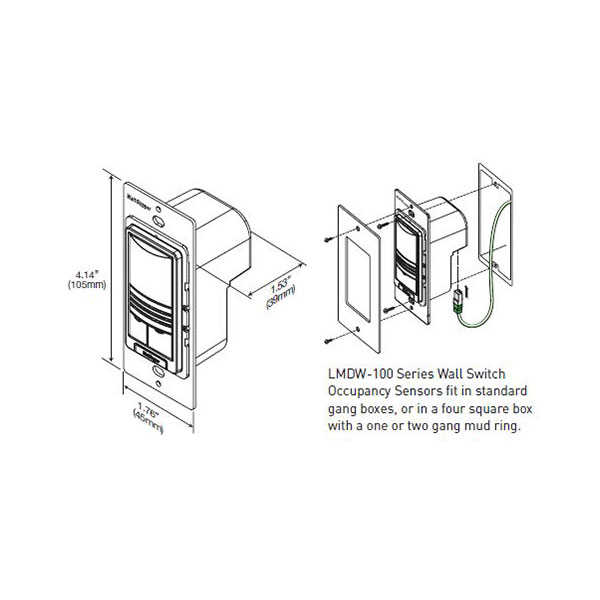

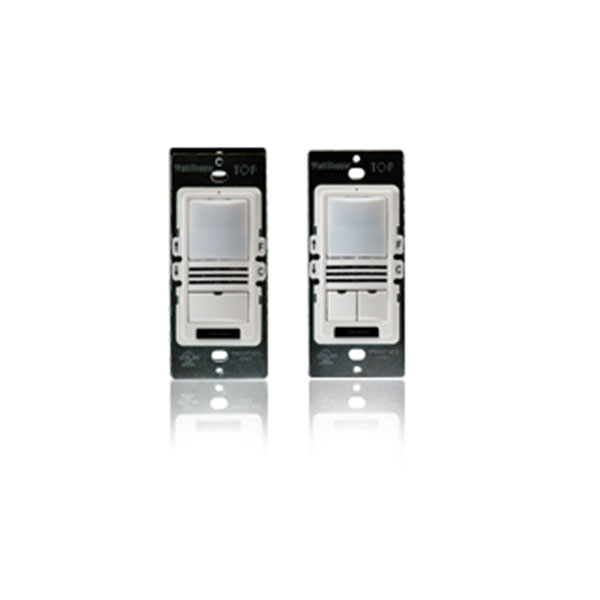

  • Sleek single gang devices fit decorator wall plates; 1- and 2-button models; six color options
  • Sensors may be used for multi-way control
  • Each switch button can control individual or multiple loads, or one scene; LED indicates status
  • Each switch button can be used to raise or lower load levels
  • Detection Signature Processing eliminates false triggers and provides immunity to RFI and EMI
  • Sensor coverage tested to NEMA Guide Publication WD 7-2000
  • This product meets the materials restrictions of RoHS

PDF BUTTONLMDW 101/102 Spec Sheet

Specifications:

  • Input voltage: 24VDC from DLM network
  • Current consumption: 20mA
  • DLM local network connection: 2 RJ45 ports

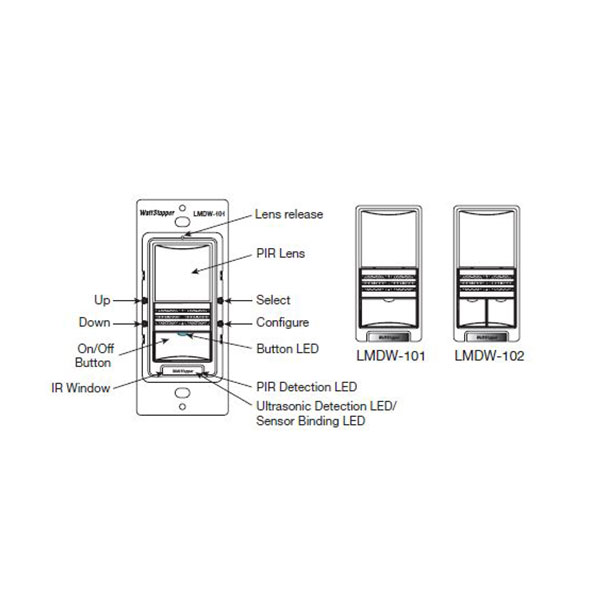

  • 1 or 2 switch buttons, each with LED status indicator

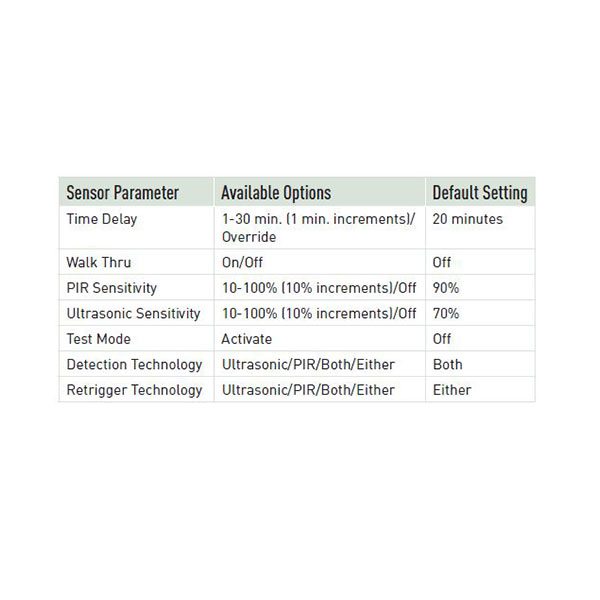

  • Scrolling LCD display and pushbuttons for setting sensor and system parameters
  • Infrared (IR) transceiver
  • Operating conditions: for indoor use only; 32-131°F (0-55°C); 5-95% RH, non-condensing
  • UL and cUL listed
  • FCC part 15 compliant
  • Five-year warranty
