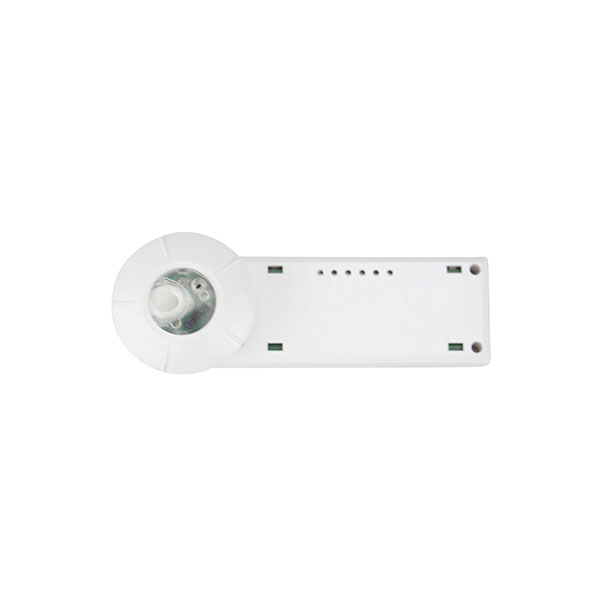

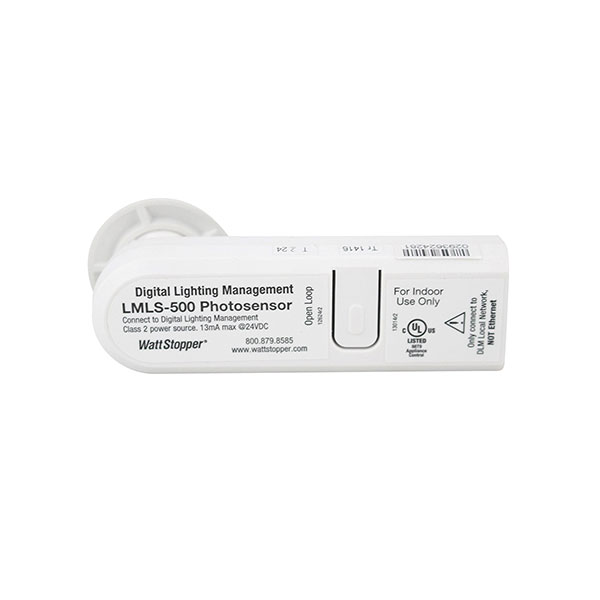

LMLS-500 – MULTI-ZONE OPEN LOOP DIGITAL PHOTOSENSOR

$240.00

PHOTOSENSOR RECOMMENDED FOR OPEN OFFICES, CAFETERIAS, CLASSROOMS, WAREHOUSES AND ANY OTHER INDOOR SPACES WITH DAYLIGHT CONTRIBUTION – BY WATTSTOPPER



Clear
SKU: LMLS-500 Categories: , , , Tags: , ,

  • Description
  • Specs
  • Manuals
  • Reviews (0)

Description

This is the multi-zone open loop digital photosensor. The LMLS-500 is an open loop, multi-zone photosensor that measures the daylight contribution in order to automatically switch or dim up to three zones of lighting. It is part of a Digital Lighting Management (DLM) system and sends light level signals to control loads connected to DLM on/off or dimming room controllers. The LMLS-500 has a photodiode with an extended range of 1-6, 553 footcandles (fc), and photopic correction to mimic the human eye, for precise measurement of visible light. Check out Wattstopper DLM products here.

FEATURES:

  • Digital Lighting Management components plug together on a free-topology Cat 5e DLM local network
  • Test mode override of programmed time delay allows easy verification of selected settings
  • Load status verification allows confirmation and testing of controlled load
  • Infrared (IR) transceiver for wireless configuration and control
  • Compatible with DLM wall switches for manual override, if desired
  • LED status indicators
  • Mounting options for toplit or sidelit applications
  • Complies with California Title 24, Section 119 requirements
  • RoHS compliant
  • Qualifies for ARRA-funded public works projects





PDF BUTTONLMLS-500 Spec Sheet

Specifications:

  • Input voltage: 24VDC from DLM local network
  • Current consumption: 7mA
  • DLM local network connection: 1 RJ45 port
  • Digital multi-band photodiode with extended range: 1–6,553 fc (10–70,536 lux)
  • Spatial response: 60º
  • LED status and configuration indicators
  • Infrared (IR) transceiver
  • Operating conditions: for indoor use only; 32-131ºF (0–55ºC); less than 90% RH, non-condensing
  • UL and cUL listed
  • FCC part 15 compliant
  • Five-year warranty
