LMPL-101 – DIGITAL PLUG LOAD ROOM CONTROLLER

$98.00$120.00

CONTROLLER ENSURES THAT ENERGY IS NOT WASTED WHEN PORTABLE LOADS ARE PLUGGED IN. IDEAL FOR USE WITH NON-ESSENTIAL EQUIPMENT IN PRIVATE AND OPEN OFFICES, LUNCH ROOMS AND BREAK ROOMS – BY WATTSTOPPER

Clear
SKU: LMPL-101 Categories: , , Tags: , , ,

  • Description
  • Specs
  • Manuals
  • Reviews (0)

Description

This is the digital plug load room controller. LMPL-101 Plug Load Room Controllers include a 20-amp relay for on/off control of connected outlets, and a high-efficiency switching power supply. They are part of a WattStopper Digital Lighting Management (DLM) system, and enable energy efficient control of plug loads. Check out Wattstopper DLM products here.

FEATURES:

  • Plug n’ Go™ automatic configuration for quick installation and maximum energy savings

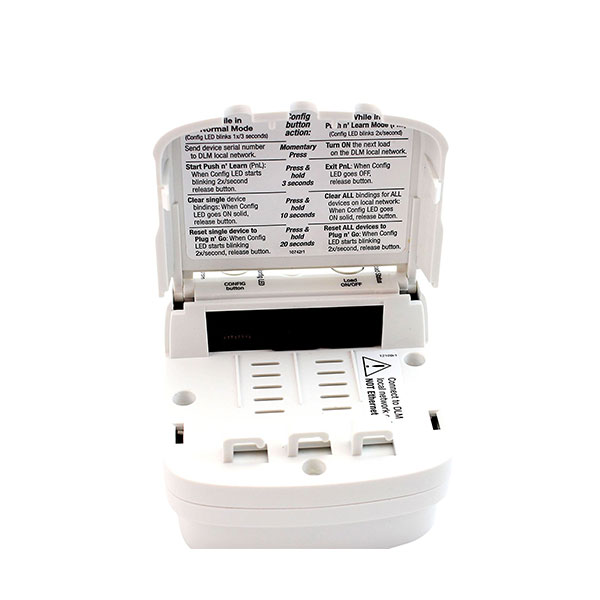

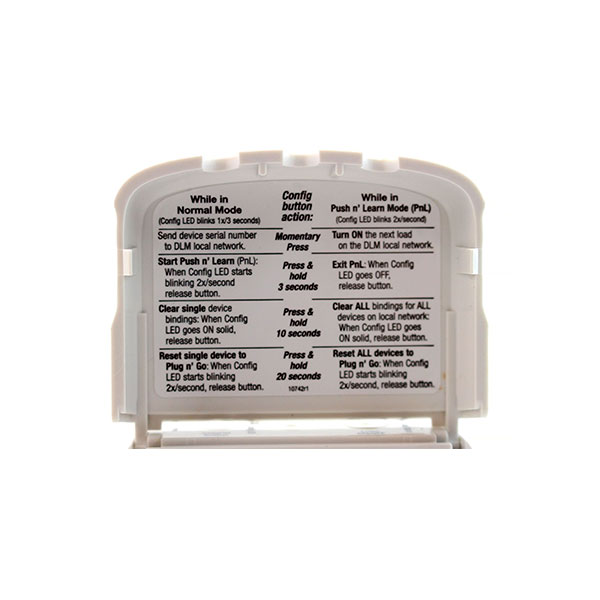

  • Push n’ Learn™ functionality for personalization without the need for tools or a PC

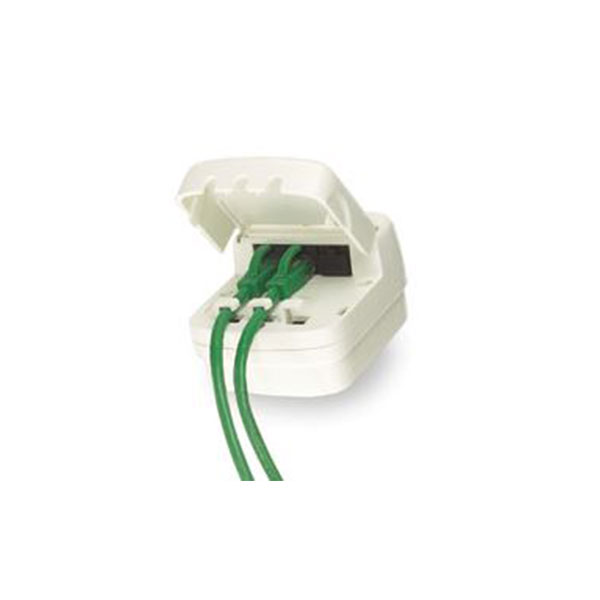

  • Digital Lighting Management components plug together on a free-topology Cat 5e DLM local network
  • Load On/Off button
  • LED indicates status of connected load

PDF BUTTONLMPL-101 Spec Sheet

Specifications:

  • Input/output voltage: 120VAC, 60Hz
  • Load ratings: Ballast: 20A Incandescent: 20A
  • Motor load: 1Hp
  • Class 2 output to DLM local network: 24VDC, 150mA across 3 RJ45 ports
  • DLM local network parameters with LMPL-101 and/or LMRC-100 Series Room Controllers only
  • Maximum current: 600mA
  • Category 5e cable, up to 1,000’
  • Maximum of 4 room controllers, controlling up to 8 loads
  • Up to 24 communicating devices
  • Operating conditions: for indoor use only; 32-104°F (0-40°C); 5-95% RH, non-condensing
  • UL and cUL listed
  • FCC part 15 compliant
  • Five-year warranty
