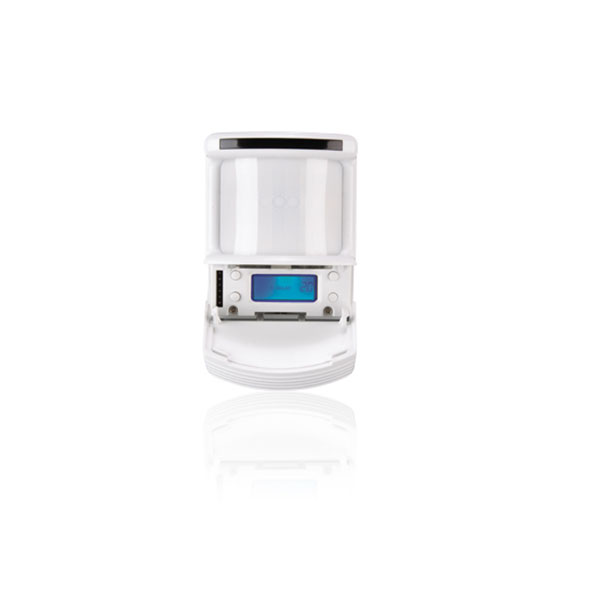

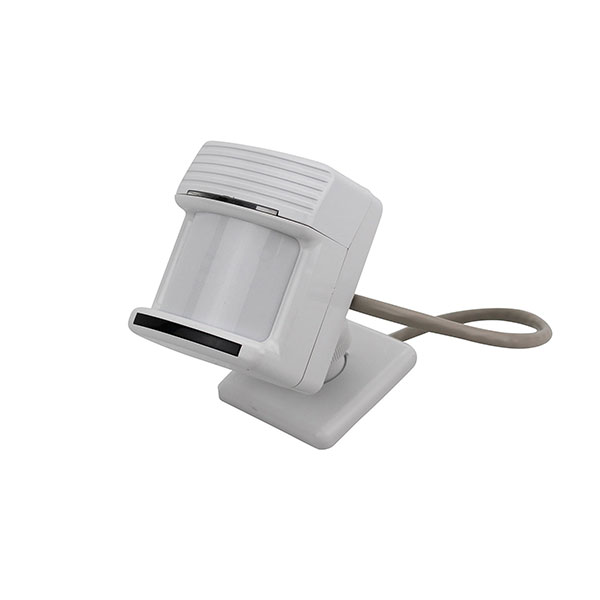

LMPX-100 – PIR CORNER MOUNT OCCUPANCY SENSOR
LMPX-100 SENSORS, WITH DIFFERENT LENSES FOR DIFFERENT SPACES, ARE IDEAL FOR LARGE AREAS INCLUDING LARGE OFFICES, COMPUTER ROOMS, KINDERGARTEN CLASSROOMS, AISLEWAYS, WAREHOUSES AND OPEN OFFICES WHERE COVERAGE CUT-OFF IS DESIRED.
- Description
- Specs
- Manuals
- Please visit literite.com for our new store!
- NON VERIFIED
Description
This is the PIR corner mount occupancy sensor. The LMPX-100 Digital PIR Corner Mount Occupancy Sensor uses passive infrared (PIR) technology and one of four lenses to detect occupancy in different types of spaces for energy-efficient control of lighting and plug loads. It is a digital sensor, and is part of a Wattstopper Digital Lighting Management (DLM) system. Check out Wattstopper DLM products here.

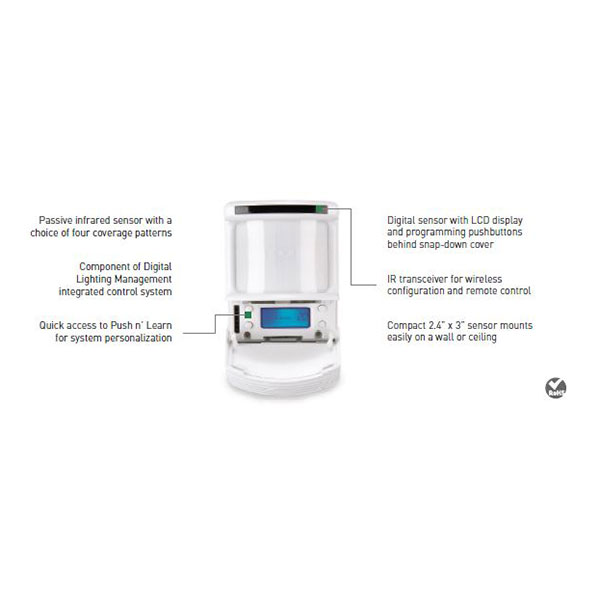

FEATURES:
- Plug n’ Go™ automatic configuration for quick installation and maximum energy savings
- Push n’ Learn™ functionality for customization without the need for tools or a PC
- Digital Lighting Management components plug together on a free-topology Category 5e DLM local network
- Infrared (IR) transceiver for wireless configuration and control
- Detection Signature Processing eliminates false triggers and provides immunity to RFI and EMI
- Sensor coverage tested to NEMA Guide Publication WD 7-2000
- The product meets the materials restrictions of RoHS
- BAA/TAA-compliant models available
LMPX-100 Spec SheetSpecifications:
- Input voltage: 24VDC from DLM network
- Current consumption: 7mA
- DLM local network connection: 1 RJ45 port via RJ45 plug and coupler (included)
- LCD display and pushbuttons for setting sensor and system parameters
- Infrared (IR) transceiver
- Operating conditions: for indoor use only; 32-104°F (0-40°C); 5-95% RH, non-condensing
- UL and cUL listed
- FCC part 15 compliant
- Five-year warranty
