LMRC-220 SERIES – DIGITAL FORWARD PHASE DIMMING ROOM CONTROLLERS (LMRC-221, LMRC-222)

LMRC-220 SERIES – DIGITAL FORWARD PHASE DIMMING ROOM CONTROLLERS (LMRC-221, LMRC-222)

Call for Price

IDEAL FOR MANUAL OR AUTOMATIC LIGHTING CONTROL, INCLUDING DAYLIGHT HARVESTING. APPROPRIATE FOR APPLICATIONS IN CONFERENCE AND TRAINING ROOMS, CLASSROOMS, LECTURE HALLS, EXECUTIVE OFFICES, RESTAURANTS AND GALLERIES – BY WATTSTOPPER

Clear
SKU: LMRC 220S Categories: , , Tags: , , ,

  • Description
  • Specs
  • Manuals
  • Reviews (0)

Description

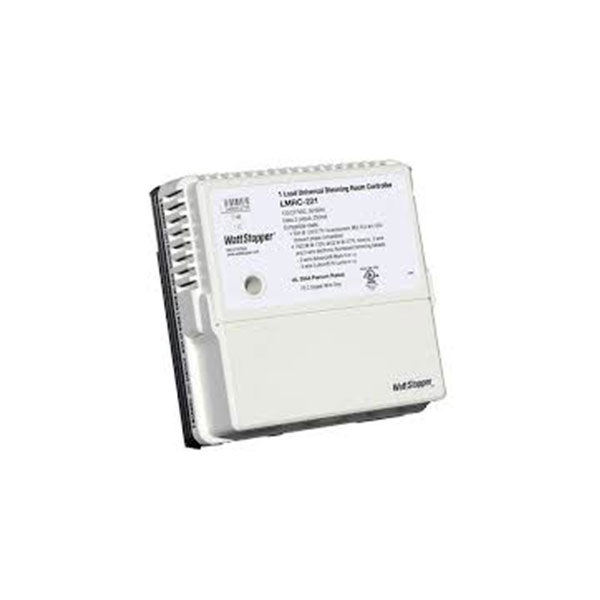

This is the digital forward phase dimming room controllers (LMRC-221, LMRC-222). LMRC-220 Series Digital Room Controllers include one or two output(s) to control a total of up to 20 amps. Load ratings include incandescent, magnetic low voltage, forward phase compatible electronic low voltage and LED drivers, neon and cold cathode, and dimmable two-wire and three-wire fluorescent ballasts. They are the foundation of a WattStopper Digital Lighting Management (DLM) system, and allow integration of occupancy sensors, daylighting controls and switches for energy-efficient lighting control. Check out Wattstopper DLM products here.

FEATURES:

  • Plug n’ Go™ automatic configuration for quick installation and maximum energy savings
  • Push n’ Learn™ functionality for personalization without the need for tools or a PC
  • Digital Lighting Management components plug together on free-topology Cat 5e DLM local network
  • On/Off/Dim local override button for each load
  • LED indicates status of each load
  • Integral current monitoring of total connected load
  • Optional lamp burn in; 12 or 100 hours
  • Square law, 2-wire and 3-wire fluorescent/LED curves

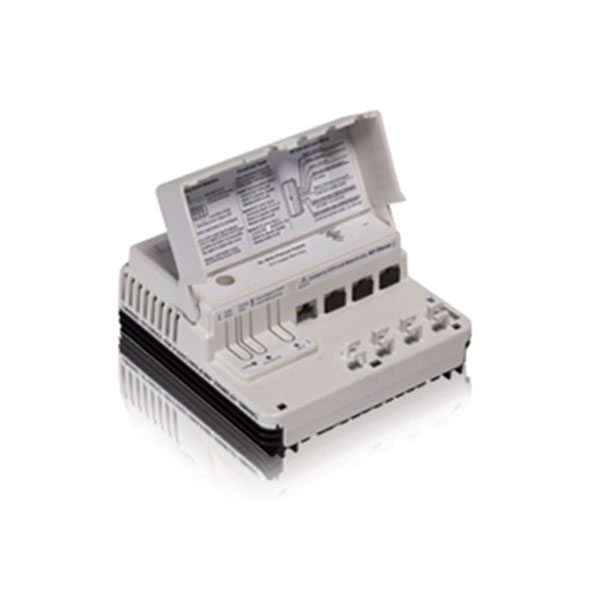

  • 4 RJ45 ports with integral strain relief
  • Zero-crossing circuitry for each relay for reliability and increased product life
  • UL 2043 plenum rated
  • RoHS compliant

PDF BUTTONLMRC 220 Series Spec Sheet

Specifications:

  • Input/output voltage: 120/277VAC, 50/60Hz
  • Maximum 20A combined load per Room Controller; each output individually rated for: 20A: tungsten, MLV, ELV or LED (forward phase compatible transformers or drivers) 16A: 2-wire fluorescent or neon/cold cathode (electronic or magnetic dimming ballast) or 3-wire fluorescent (electronic dimming ballast)
  • Minimum load: 10W
  • Class 2 output to DLM local network: 24VDC, up to 250mA across 4 RJ45 ports
  • DLM local network parameters: - Maximum current: 800mA - Cat 5e cable: 150’ per device up to 1,000’ max. - Up to 64 loads - Up to 48 communicating devices - Maximum 4 LMPB-100, LMPL-101 or LMRC-100 Series Room Controllers
  • Operating conditions: for indoor use only; 32-131°F (0-55°C); 5-95% RH, non-condensing
  • UL and cUL listed
  • FCC part 15 compliant
  • Five-year warranty
