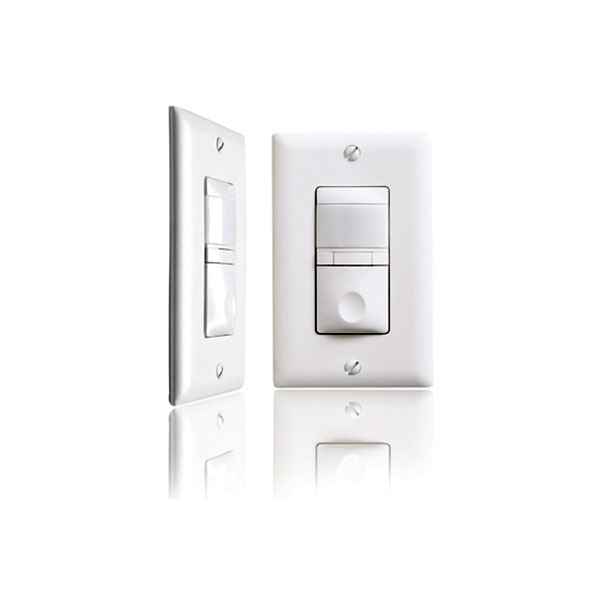

WattStopper RD-200-W PASSIVE INFRARED (PIR) DIMMING WALL SWITCH VACANCY SENSOR

THE RD-200 IS IDEAL FOR LIVING, DINING AND FAMILY ROOMS, BEDROOMS, BATHROOMS AND OTHER INDOOR RESIDENTIAL AREAS. IT IS USED IN PLACE OF A STANDARD SWITCH, DIMMER OR OCCUPANCY SENSOR AND HELPS HOMEOWNERS MAXIMIZE ENERGY SAVINGS AND ENJOY THE MOST PLEASING LIGHT LEVEL FOR A GIVEN TASK. – BY WATTSTOPPER

  • Description
  • SPECS
  • MANUALS
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

WattStopper RD-200-W PASSIVE INFRARED (PIR) DIMMING WALL SWITCH VACANCY SENSOR. This is the Passive Infrared (PIR) Dimming Wall Switch Vacancy Sensor. The RD-200 PIR Dimming Wall Switch Vacancy Sensor provides preset dimming control and occupancy-based automatic lighting shutoff for applications throughout the home. The RD-200 can dim incandescent loads from a minimum level of 10% to a maximum level of 100%. When the pushbutton is pressed and held, the RD-200 will ramp the lights up and down in a continuous cycle until the pushbutton is released. The dimming direction may be reversed by momentarily releasing the pushbutton and then pressing it again.

  • Replaces standard single pole switch or incandescent dimmer
  • Low-profile styling
  • Choice of four decorator colors; lens is color matched to device
  • Includes matching single-gang wall plate
  • Lighted pushbutton for visibility in darkened rooms
  • Manual-on or automatic-on operation
  • Adjustable time delay from 15 seconds to 30 minutes
  • Soft start technology to prolong lamp life
  • Air gap isolation switch for safe re-lamping
  • If enabled, light level sensing prevents automatic-on when adequate daylight exists
