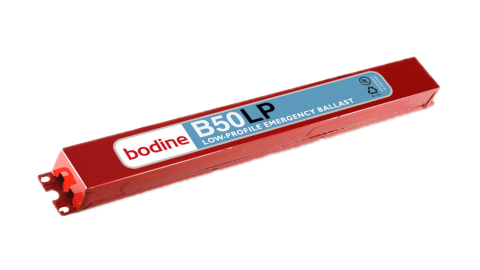

Bodine B50LP Fluorescent Emergency Ballast
Bodine B50LP Fluorescent Emergency Ballast. Low-Profile for Space-Limited Fixtures 1300 Initial Lumen Output. End-of-Lamp-Life Compatible.
- Description
- INSTRUCTIONS
- Please visit literite.com for our new store!
- NON VERIFIED
Description
Bodine B50LP Fluorescent Emergency Ballast. Low-Profile for Space-Limited Fixtures 1300 Initial Lumen Output. End-of-Lamp-Life Compatible. The B50LP low-profile emergency ballast works in conjunction with a low-profile or standard-size AC ballast to convert new or existing fluorescent fixtures into unobtrusive emergency lighting. The emergency ballast consists of a high-temperature nickel-cadmium battery, charger and electronic circuitry in one compact case.
Benefits
• Low Profile case
• Emergency mode lumen output up to 1300 lumens
• One or Two-lamp operation
• End-of-Lamp-Life Compatible
Specifications
UL Listed for US and Canada
Factory or Field Installation
(Indoor and Damp)
Illumination Time
90 Minutes
Initial Light Output
750 – 1300 Lumens
Full Warranty
5 Years (NOT pro-rata)
Dual Input Voltage
120/277 VAC, 60 Hz
AC Input Current
200 mA
AC Input Power Rating
4.0 Watts
Test Switch
Single Pole
Battery
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery
7- to 10-Year Life Expectancy
Battery Charging Current
180 mA
Recharge Time
24 Hours
Charging Indicator Light
LED
Temperature Rating (Ambient)
0°C to +50°C (32°F to 122°F)
Dimensions
21.5” x 1.18” x 1.18”
(546 mm x 30 mm x 30 mm)
Mounting Center 21.1” (536 mm)
Weight
3.3 lbs. (1.5 kg)
For other items like the Bodine B50LP Fluorescent Emergency Ballast click here.
For more information on Bodine’s line of lighting solutions click here.
NON VERIFIED CONTENT
Related Products
-
Bodine B50CT Emergency Ballast
Bodine B50CT Emergency Ballast for Fluorescent and type A TLED lamps. Compatible with 7-16.5W Type A TLED lamps. Meets CEC Title 20 efficiency standards.
-
Bodine B50 Emergency Ballast
Bodine B50 Emergency battery backup ballast for linear fluorescent lamps. Compatible with one or two T5 or T8 lamps, 120-277V. Lumen output up to 1600 lumens. Compatible with TLED lamps (see specs for compatibility).
-
Bodine B60 Emergency Ballast
Bodine B60 Fluorescent Emergency Ballast suitable for dry or damp locations, and one or two linear T8, T10 or T12 fluorescent lamps.
-
Bodine B94GU Emergency Ballast
Bodine B94GU Emergency Ballast is compatible with 18-42W (4 pin) twin, quad or triple twin-tube and with most 1 – 4 lamp configurations.
-
Bodine B4CF2P Emergency Ballast
Bodine B4CF2P Emergency Ballast can be used with one 13-42W or two parallel 13-26W twin, quad or triple-tube lamps. See specs for more configurations.
-
Bodine B30ST Emergency Ballast
Bodine B30ST Emergency Ballast is code compliant and compatible with linear fluorescent, compact fluorescent and Philips InstaFit LED lamps.
-
Bodine LP600STU Emergency Ballast
Bodine LP600STU Emergency Ballast provides automatic code compliant testing and is compatible with HO T5 and T8 lamps.
-

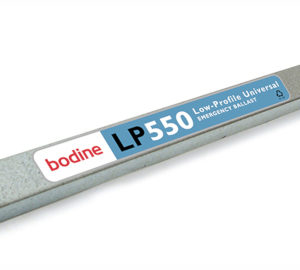

Bodine LP550 Fluorescent Emergency Ballast
Bodine LP550 Fluorescent Emergency Ballast. Low-Profile for Space-Limited Fixtures, standard and HO T5 and T8 Lamps. End-of-Lamp-Life Compatible
-

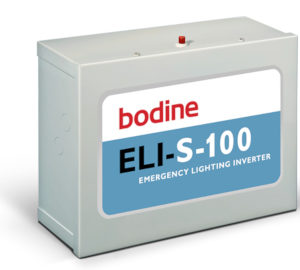

Bodine ELI-S-100-CEC Emergency Lighting Inverter
