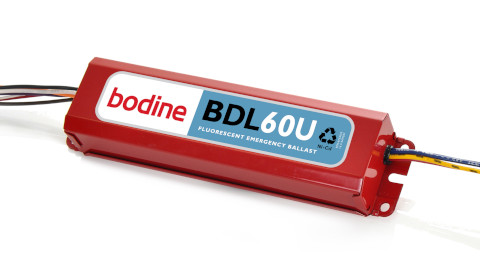

Bodine BDL60U Emergency Ballast

Description

Bodine BDL60U Emergency Ballast / Emergency battery backup. Suitable for damp locations and suitable for use with most 32W – 215W (4’ – 8’) T8, T10 or T12 fluorescent lamps without integral starters, including U-shaped, HO, VHO, circline and energy-saving.

One- or two-lamp emergency; universal input voltage: 120 through 277 VAC, 50 or 60 Hz
Replaces model B60U

UL Listed
Factory or Field Installation
(Indoor and Damp)

Illumination Time
90 Minutes

Initial Light Output
300 – 700 Lumens

Full Warranty
3 Years (NOT pro-rata)

Universal Input Voltage
120 Through 277 VAC, 50 or 60 Hz

AC Input Current
60 mA

AC Input Power Rating
5.0 Watts

Test Switch
Single Pole

Battery
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery
7- to 10-Year Life Expectancy

Battery Charging Current
280 mA
Recharge Time
24 Hour

Charging Indicator Light
LED

Temperature Rating (Ambient)
0°C to +50°C (32°F to 122°F)

Dimensions
9.4″ x 2.4″ x 1.5″
(238 mm x 60 mm x 38 mm)
Mounting Center 8.9″ (226 mm)

Weight
2.5 lbs. (1.13 kg)

Further specifications on the Bodine BDL60U Emergency Ballast click here, or visit the Signify official website.

Model BDL60U is warranted for three (3) full years from date of purchase. Please see detailed warranty information on the Signify official web site.
