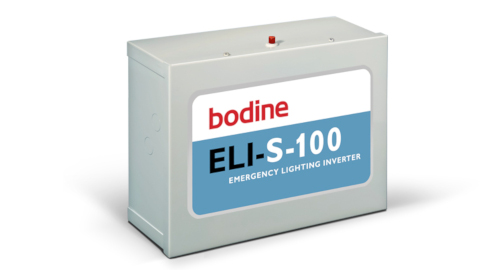

Bodine ELI-S-100-CEC Emergency Lighting Inverter

Bodine ELI-S-100-CEC Emergency Lighting Inverter

Bodine ELI-S-100-CEC Emergency Lighting Inverter. Sinusoidal (Sine Wave) Output 100 VA Maximum Output Power Automatic Output Voltage Select Automatic Dimming (0 to 10V) of Connected Load.

  • Description
  • INSTRUCTIONS
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

Bodine ELI-S-100-CEC Emergency Lighting Inverter. Sinusoidal (Sine Wave) Output 100 VA Maximum Output Power Automatic Output Voltage Select Automatic Dimming (0 to 10V) of Connected Load.

Benefits

• Automatic output voltage select
• Automatic dimming (0 to 10V) of connected load
• Adjustable maximum dim setting
• Works with LED and fluorescent fixtures
• Ideal for (but not limited to) screw-base LED lamps
• Compatible with AC (line voltage) driven TLED lamps
• Remote-mounting up to 250 feet maximum
• Meets CEC Title 20 efficiency standards

Specifications

UL Listed for US and Canada
Listed to UL924 and tested to CSA 22.2 No. 141
Field or Factory Installation (Indoor and Damp)
Output Class 2 Compliant

Maximum Connected Load Power
400 W*

Warranty
5 Years Full Coverage (not including battery)
3 Year Battery warranty, plus 7 years
additional pro-rating

Illumination Time
90 Minutes

AC Input Voltage
120 VAC, 60 Hz or 277 VAC, 60 Hz

Input Charging Current
370 mA Max Charging

Output Voltage
120 or 277 VAC, 60Hz, automatically selected

Output Power
Maximum output: 100VA
Minimum load P.F +/- 0.75

Transfer Time
2 – 5 seconds

Charging Indicator Light/Test Switch
Integrated LED/test switch

Battery
Maintenance-Free Sealed Lead Acid Battery

Recharge Time
24 Hours

Temperature Rating (Ambient)
32° F to 104° F (0° C to 40° C)

Dimensions
12.56” x 9.81” x 4.68”
(319 mm x 249 mm x 119 mm)
Weight
25 lbs. With Batteries installed

For other items like the Bodine ELI-S-100-CEC Emergency Lighting Inverter click here.

For more information on Bodine’s line of lighting solutions click here.

NON VERIFIED CONTENT
