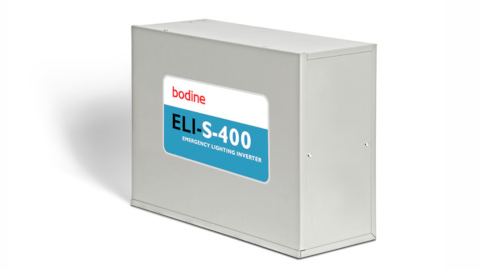

Bodine ELI-S-400 Emergency Lighting Inverter

Description

Bodine ELI-S-400 Emergency Lighting Inverter. Emergency Lighting Inverter. Sinusoidal (Sine Wave) Output. 400 VA Power Maximum.

Benefits

• Sine wave output
• 400 VA power maximum
• Transfer Time: 50 ms

Specifications

ETL Listed
Listed to UL924
For Field Installation
Illumination Time
90 Minutes
Maximum Load Power
400VA
Full Warranty
1 year full, 4 years pro-rata
Input
• Input voltage (dual): 120 or 277VAC
• Input frequency: 60 Hz
• Synchronizing slew rate: 1 Hz per second nominal
• Input surge protection: Meets UL 924
Output
• Output voltage (dual): 120 or 277VAC, 60Hz
• Output regulation: (static) ± 5% based on a
0 – 100% resistive load
• Output distortion: Less than 3% THD linear load
• Load Power Factor: .5 lag to .5 lead
• Output frequency: Normally, Synchronized to utility,
± 2 Hz during emergency
• Overload: 150% for five seconds
• Time to transfer to inverter after a utility
power failure: 50 ms.

Charging Indicator Light/Test Switch
Integrated LED/test switch

Battery Type
Maintenance-Free Sealed Lead Calcium

Recharge Time
Less than 168 Hours (meets UL924)

Battery Protection
Automatic low-battery voltage disconnect and reverse polarity
protection. Automatic restart upon utility return
Temperature Rating
68°F to 86°F (20°C to 30°C)

Dimensions
18″W x 8″D x 15″H
Weight
98 lbs (44.4 kg)
