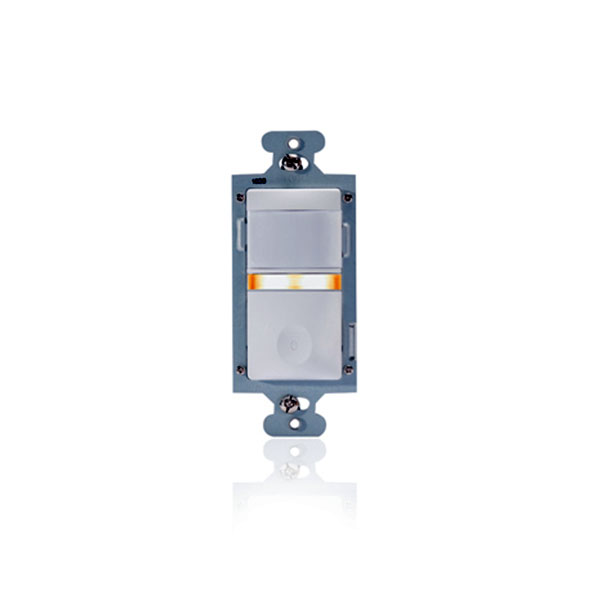

RS-150BA-N – PIR WALL SWITCH VACANCY SENSOR W/ NIGHTLIGHT

$45.15 $40.00

THE RS-150BA-N PIR VACANCY SENSOR REQUIRES NO ADJUSTMENT AND IS IDEAL FOR BATHROOM AND BEDROOM APPLICATIONS WHERE THE SWITCH LOCATION HAS AN UNOBSTRUCTED LINE OF SIGHT OF THE ROOM – BY WATTSTOPPER

Clear
SKU: N/A Categories: , , , , , , Tags: , , ,

  • Description
  • SPECS
  • Reviews (0)
  • NON VERIFIED

Description

This is the PIR wall switch vacancy sensor w/ NightLight. The RS-150BA-N Passive Infrared (PIR) Vacancy Sensor provides automatic shutoff for single-pole lighting control applications. It is engineered to comply with specific provisions of California’s Title 24-2013 energy code.

The RS-150BA-N operates as a manual-on sensor. Users must press the on/off pushbutton to turn on lighting. The RS-150BA-N employs PIR technology to sense the difference between the infrared energy from a person in motion and the background space. It keeps lighting on as long as motion is detected and provides automatic shutoff, following a 30-minute time delay, when motion is no longer detected. Users may turn the lighting off manually.

The integral nightlight helps preserve night vision by providing low-level illumination when the connected lighting is off. The nightlight uses energy-efficient LEDs. Check out Wattstopper DLM products here.

  • Complies with 2011 NEC requirements
  • Replaces single-pole switches
  • Fixed 30-minute time delay; no adjustment necessary
  • Amber LED nightlight illuminates whenever connected load is off
  • Lighted switch for visibility in darkened rooms
  • Low-profile styling
  • Choice of five decorator colors; lens is color-matched todevice
  • Operates most common types of lighting or fan motors
  • Relay-based switching
  • No current leakage to load in off mode for safety
  • Compatible with decorator wall plates
  • CA Title 24 compliant

WS-CaseStudy-GreenHome_OccupancyVacancyTimeswitches

 WS-Cutsheet-RS-150BA-N-PIR-Wall-Switch-Vacancy-Sensor

  • 120 VAC, 60 Hz; neutral required
  • Load ratings: 0-600W incandescent, LED, fluorescent, compact fluorescent (CFL), magnetic low voltage (MLV) or electronic low voltage (ELV) or 1/6 hp motor
  • Fixed time delay: 30 minutes
  • PIR coverage: 180°, 600 ft² (56 m²)
  • 2.63” x 1.69” x 1.88” (67.8mm x 42.9mm x 47.8mm) L x W x D
  • Operating conditions: 32-131°F (0-55°C), 95% RH, non-condensing; for indoor use only
  • UL and cUL listed
  • Five-year warranty
