WSX-D-PDT – DUAL TECHNOLOGY OCCUPANCY SENSOR SWITCH W/ DIMMING

Call for Price

Wall Switch PDT Occupancy Sensor with Dimming from WSX family.

Clear
SKU: WSX D PDT Categories: , , , , Tags: , , , , ,

  • Description
  • Specs
  • Manuals
  • Reviews (0)
  • NON VERIFIED

Description

  • Wall Occupancy Sensor with Soft Push Button and 0-10 Volt Dimming Capability
  • Passive Dual Technology (PDT) with Microphonics for Superior Detection

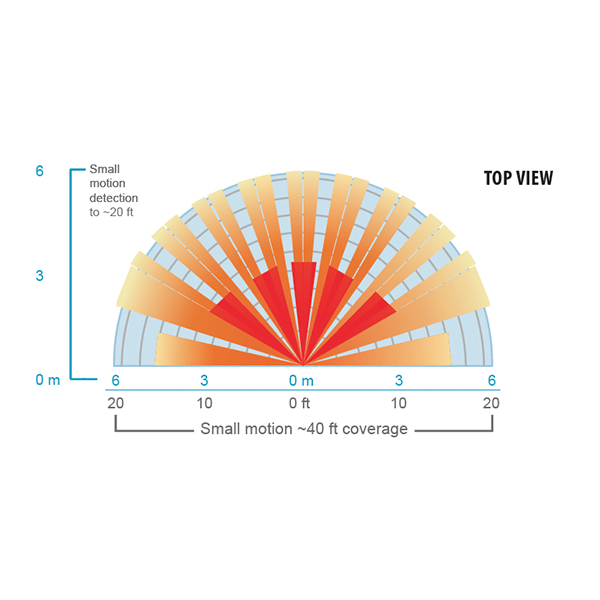

  • Small Motion Detection up to 20 Ft
  • Automatic On

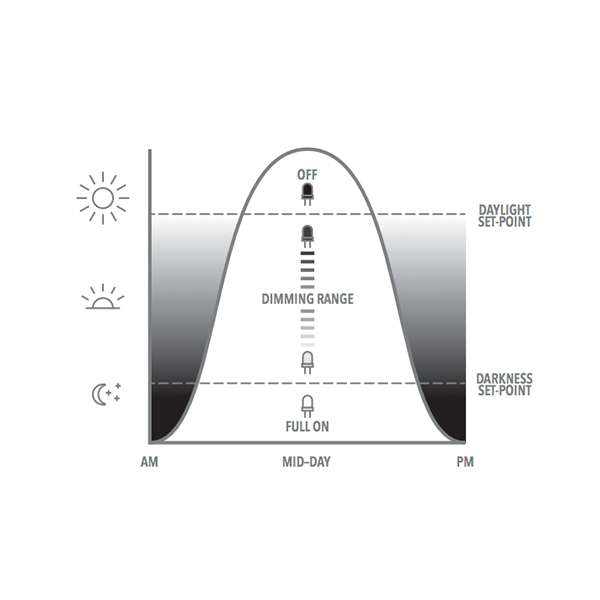

  • Integrated Photocell (disabled by default) prevents light from turning on if sufficient daylight is present – not available in Nightlight versions
  • Push-button programmable without removing cover plate – adjustable time delays & operating modes
  • Pre-configured for wiring without a neutral but is field configurable for code with neutral
  • Applications: Small Offices, Small Rest Rooms, Closets, Small Enclosed Spaces

PDF BUTTONWSX-D Occupancy Sensor Spec Sheet

PDF BUTTONWSX-D Product Information

Specifications:

  • Dimensions: 2.74” H x 1.68” W x 1.63” D
  • 120/277VAC at 50/60Hz
  • Maximum Load/Pole: (Relay) 800 W @ 120VAC, 1200 W @ 277VAC, 1500 W @ 347VAC
  • Minimum Load: None
  • Motor Load: 1/4 HP
  • Max Sink Current: 50 mA 0-10V Dim
  • Min Output: <0.3 V
  • Mounting Type: Wall
  • Single Gang Switch Box
  • Listing: UL Listed
  • Product Color Options: White and Ivory (Standard Buy Online), Call for: Black, Gray, Light Almond, Red
