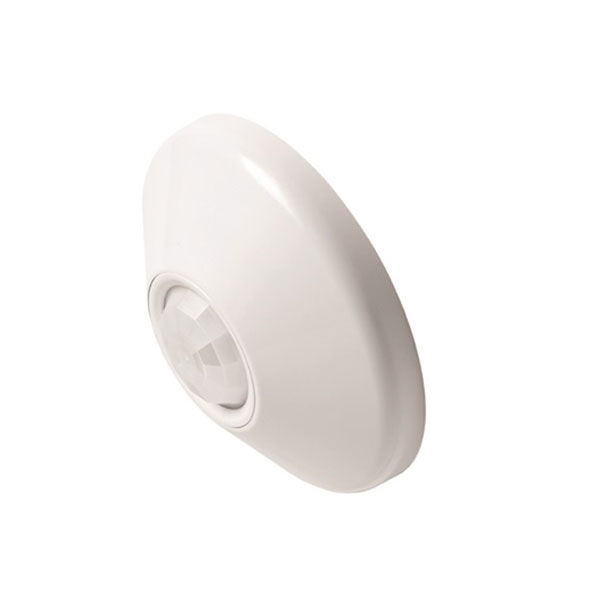

CMR PDT 10 – EXTENDED RANGE 360° CEILING MOUNT SENSOR w/ DUAL TECHNOLOGY

Description

The CMR 10 Series incorporates Passive Infrared (PIR) technology into an attractive and economical

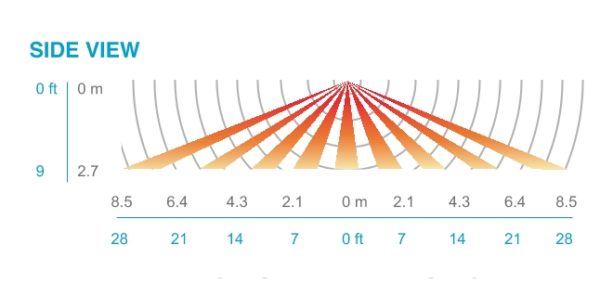

line powered sensor to provide maximum viewing from the ceiling. When mounted at 9 ft (2.74 m),
this sensor views up to 28 ft (8.53 m) in all directions. Its circular coverage pattern is designed
for walking motions; making it ideal for T-shaped intersections in corridors, or other areas where
wall mounting a sensor is not practical. Low ceiling heights are also best covered with the CMR 10.
For example, when mounted at only 7 ft (2.13 m), the height of pick aisles in many distribution
centers, the CMR 10 provides a 32 ft (9.75 m) diameter pattern of coverage. For detection of minor
motion is also required, the CMR PDT 10 Series Dual Technology sensor is recommended.

FEATURES
• Push- button programmable, adjustable time delays, and multiple operating modes
• 100 hr lamp burn-in timer
• No field calibration or sensitivity adjustments required

CMR 10 Spec Sheet

Specifications:

• Size:  4.55" diameter and 1.55" deep
• Mounting: 3.5" octagon box, ceiling tile surface, single gang box
• Color: White
• Maximum Load(per pole): 800W @ 120 VAC, 1200W @ 277 VAC, 1500W @ 347 VAC
• Motor Load:  1/4 HP
• Frequency:  50/60Hz
• Dimming Load:   Sinks <20 mA; ~40 Ballasts @ .5 mA each
