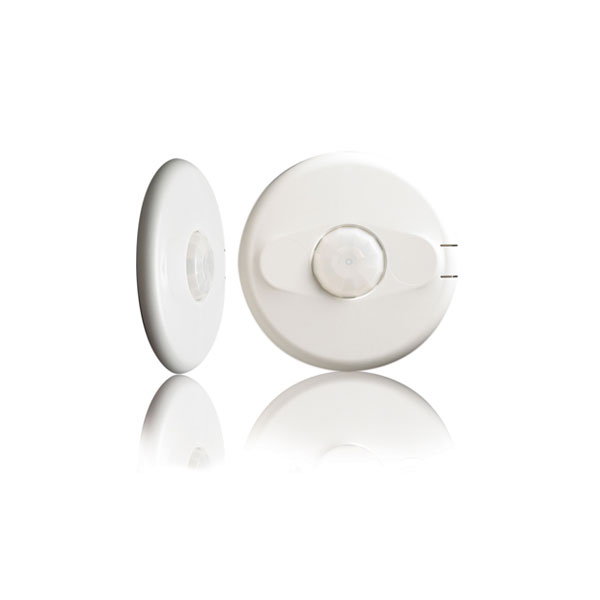

CI-355 – PASSIVE INFRARED LINE VOLTAGE CEILING SENSOR

CI-355 – PASSIVE INFRARED LINE VOLTAGE CEILING SENSOR

THE CI-355 WORKS WELL IN OPEN OFFICE SPACES, COMPUTER ROOMS, CONFERENCE ROOMS, CLASSROOMS, AND WAREHOUSES. IT IS A GOOD CHOICE FOR AREAS WITH HIGH CEILINGS OR WITH TWO-LEVEL LIGHTING. THE CONVENIENT MOUNTING SYSTEM KEEPS INSTALLATION COSTS DOWN. IT ALSO ELIMINATES THE NEED FOR A POWER PACK BY USING LINE VOLTAGE WIRING. CI-355 – 360° UP TO 1200 FT2, CI-355-1 – 360° UP TO 500 FT2 – BY WATTSTOPPER

Clear
  • Description
  • SPECS
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

This is the passive infrared line voltage ceiling sensor. Wattstopper’s CI-355 passive infrared (PIR) occupancy sensor automatically turns lighting on and off based on occupancy. The sensor mounts on the ceiling with a flat, low-profile appearance and provides 360 degrees of coverage.

The CI-355 is line voltage and operates on a single phase at 120, 230, 277 or 347 VAC. The sensor uses passive infrared technology (PIR) to sense occupancy and automatically turn lighting on. PIR works by sensing the difference between infrared energy from a human body in motion and the background space. When no occupancy is detected for the length of the time delay, lighting automatically turns off. Check out Wattstopper DLM products here.

CI-355 – 360° up to 1200 ft2

CI-355-1 – 360° up to 500 ft2
