LMRC-110 SERIES – 0-10 VOLT DIMMING ROOM CONTROLLERS (LMRC-111, LMRC-112)

LMRC-110 SERIES – 0-10 VOLT DIMMING ROOM CONTROLLERS (LMRC-111, LMRC-112)

$155.00$210.00

IDEAL FOR SINGLE OR MULTIPLE ZONE ON/OFF OR DIMMING CONTROL APPLICATIONS INCLUDING PRIVATE OFFICES, OPEN OFFICES, CONFERENCE ROOMS AND CLASSROOMS. METERING MODELS HELP FACILITY MANAGERS WHO WANT TO TRACK BUILDING POWER USAGE FOR LIGHTING OR OTHER LOADS BY WATTSTOPPER

Clear
SKU: LMRC 110S Categories: , , Tags: , , , ,

  • Description
  • Specs
  • Manuals
  • Reviews (0)
  • NON VERIFIED

Description

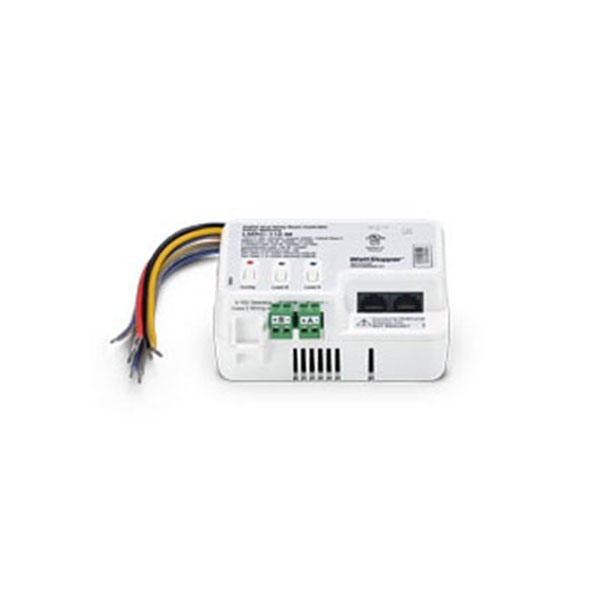

This is the 0-10 volt dimming room controllers (LMRC-111, LMRC-112). This is the LMRC-110 series room controllers include one or two relay(s) to switch a total of 10 amps, a high-efficiency switching power supply and dual 0-10 volt outputs per relay for control of dimmable loads including compatible LED drivers or electronic ballasts.They are the foundation of a Digital Lighting Management (DLM) system, and allow integration of occupancy sensors, daylighting controls and switches for energy-efficient control. Check out Wattstopper DLM products here.

FEATURES:

  • Push n’ Learn™ functionality for personalization without the need for tools or a PC
  • Digital Lighting Management components plug together on a free-topology Cat 5e DLM local network eliminating wiring errors
  • On/Off/Dim local override button for each load
  • LED indicates status of each load
  • Optional lamp burn in; 12 or 100 hours
  • Optional instantaneous current and voltage measurement of total connected load
  • 2 RJ45 ports; molded cable tie ring for strain relief
  • Zero-crossing circuitry for each relay for reliability and increased product life
  • UL 2043 plenum rated
  • This product meets the materials restrictions of RoHS
  • U.S.-made models available for public works projects

PDF BUTTONLMRC 110 Series Spec Sheet

Specifications:

  • Voltage: 120/277VAC; 50/60Hz
  • Maximum 10A combined load per Room Controller; each relay rated for 10A ballast, E-ballast or incandescent
  • Galvanically isolated Class 1 pigtails and Class 2 terminals for 0-10VDC signal; sinks up to 50mA per output (Class 1/ Class 2) per channel for control of compatible ballasts (25 if each sources 2mA)
  • Intelligently controlled Class 2 output to DLM local network: 24VDC, up to 150mA across 2 RJ45 ports
  • DLM local network parameters:
  • Maximum current: 800mA
  • Category 5e cable: 150’ per device to 1,000’ max.
  • Up to 64 loads
  • Up to 48 communicating devices
  • Maximum 4 LMPB-100, LMPL-101 or LMRC-100 Series Room Controllers
  • Requires LMCS 4.5.1, Segment Manager 2.1.23, or LMCT 5.24 (or later)
  • Operating conditions: for indoor use only; @120/277V: 32-131°F (0-55°C); 5-95% RH, non-condensing
  • UL and cUL listed (E101196)
  • FCC part 15 compliant
  • Five-year warranty
