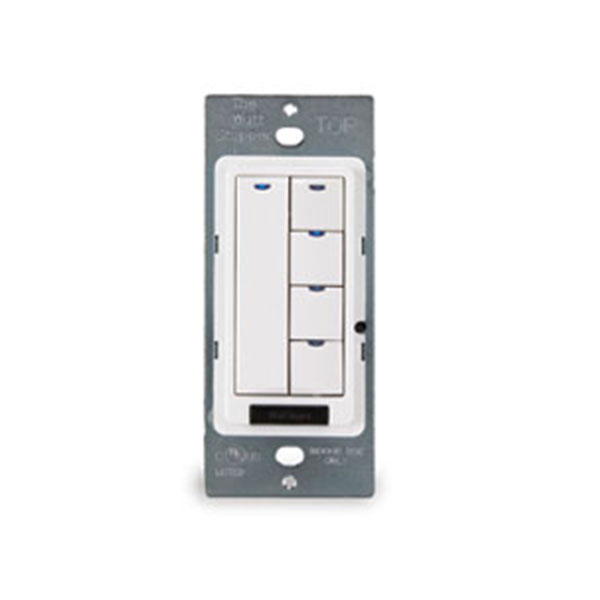

LMSW-105 – 5-BUTTON SCENE SWITCH

$145.00$158.00

IDEALLY SUITED FOR USE IN CONFERENCE AND BOARD ROOMS, CLASSROOMS, TRAINING CENTERS, AND OTHER APPLICATIONS WHERE PRESET SCENE-BASED DIMMING CONTROL IS DESIRED. WORKS WITH LMDM-101 DIGITAL DIMMING WALL SWITCHES TO CREATE A FLEXIBLE AND ELEGANT SMALL DIMMING SYSTEM- BY WATTSTOPPER

Clear
SKU: LMSW 105 Categories: , , Tags: , , ,

  • Description
  • Specs
  • Manuals
  • Reviews (0)
  • NON VERIFIED

Description

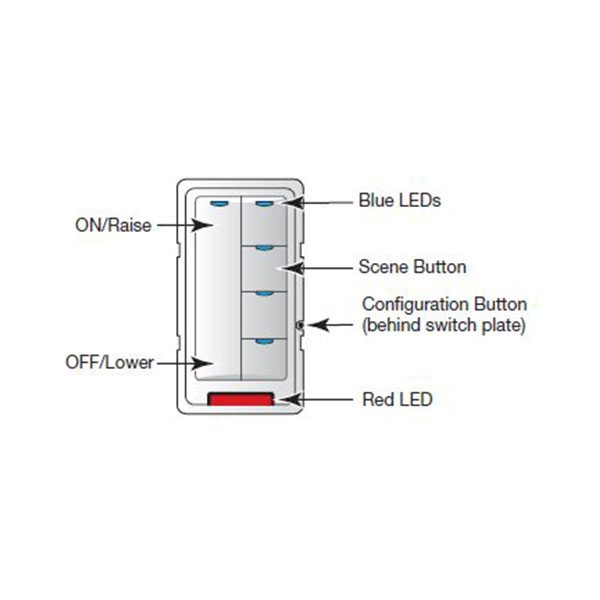

This is the 5-button scene switch. The LMSW-105 Digital Scene Switch is a low voltage device that sets and recalls preset lighting scenes and raises and lowers lighting levels. It is part of a Digital Lighting Management (DLM) system and controls loads connected to DLM room controllers by accessing four of the 16 scenes available in a DLM local network. Check out Wattstopper DLM products here.

FEATURES:

  • Hidden configuration button for easy access to Push n’ Learn mode
  • Used with DLM dimming room controller
  • Master raise/lower paddle and all-on/all-off control
  • Infrared (IR) transceiver for wireless configuration and control
  • Sleek single gang device fits decorator wall plates
  • May be used for multi-way control applications
  • LED status indicators
  • Six color options and custom engraving options; standard buttons may be replaced in the field
  • The product meets the materials restrictions of RoHS
  • BAA/TAA-compliant models available

PDF BUTTONLMSW 105 W Spec Sheet

Specifications:

  • Input voltage: 24VDC from DLM local network
  • Current consumption: 5mA
  • DLM local network connection: 2 RJ45 ports
  • Control button with LED status indicator
  • Hidden configuration button for access to Push n’Learn mode
  • Infrared (IR) transceiver
  • Operating conditions: for indoor use only;
  • 32-131°F (0-55°C); 5-95% RH, non-condensing
  • UL and cUL listed
  • FCC part 15 compliant
  • Five-year warranty
