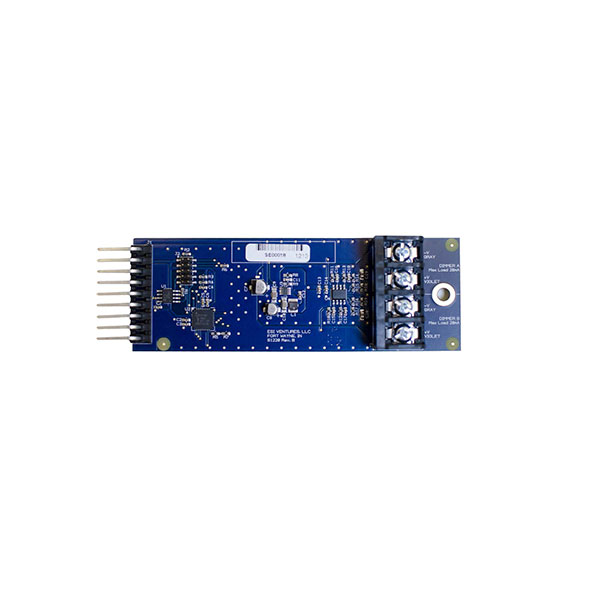

DIM-0/10-2CH – 2 CHANNEL LOW VOLTAGE DIMMING MODULE

Call for Price

0-10V 2 Channel Dimming Module from Touche.

Categories: , , Tags: ,

  • Description
  • Specs
  • Manuals
  • Reviews (0)
  • NON VERIFIED

Description

This is the 2 channel low voltage dimming module.

  • Provide two channels of 0-10V dimming for up (40) ballasts per channel (80 total).
  • Combine a two-pole line voltage switching module and a two channel 0-10V dimming module. This completely disconnects the line voltage load from the source automatically when the dimmer is set to 0%.
  • Dimming Modules communicate with the Master Interface to report:
    • The dimmer’s current dimming level (0-100%)
    • The line source state (available or off)
    • The communication status (active / not available)
    • The module’s “health” (if the module is defective)
  • Interchangeable with all other RD style relay and dimming modules, providing a higher level of flexibility than currently available in the market

 DIM-0/10-2CH Spec Sheet

Specifications:

  • 2 Isolated channels
  • 20mA per channels - 40 ballast per channel - 80 ballasts total
  • Uses #10 AWG wire
