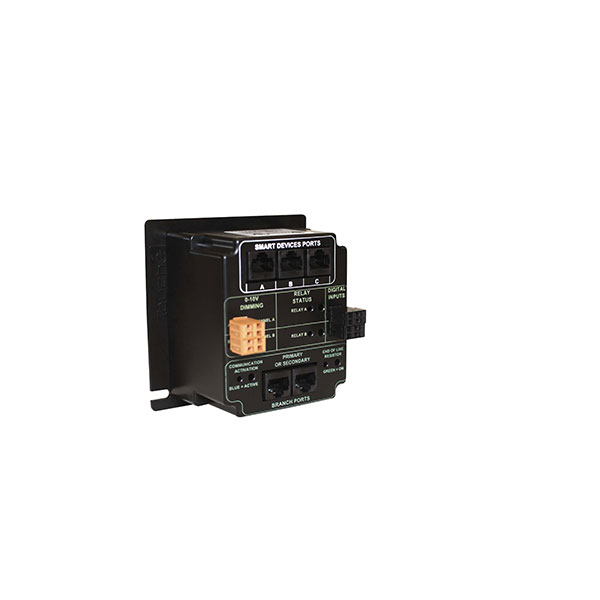

LRM-2P-120/347 – LOCAL RELAY MODULE W/ OPTIONAL, 2-CHANNEL, 0-10V DIMMING

Description

This is the Local Relay Module w/ optional, 2-channel, 0-10V Dimming.

• Provide a distributed control solution which allows the installer to place the module in close proximity to the controlled load.
• Can be connected directly to a master interface or through multi-function interfaces.
• Local Relay Modules each encompass (2) latching (mechanically held) single pole relays and each module incorporates the latest in “zero-cross” switching technology for improved equipment life.
• Include (3) “smart ports.” Each smart port provides a daisy-chained connection for up to (8) smart devices and are connected to the Local Relay Modules via standard Cat5 patch cables.

 Local Relay Module Spec Sheet

Specifications:

• Mounts on standard 4'' x 4'' electrical junction box
• Black thermoplastic
• 10-90% Non-condensing

 Local Relay Module Wiring Diagram
