WattStopper LMCT-100-2 DIGITAL WIRELESS CONFIGURATION TOOL

WattStopper LMCT-100-2 DIGITAL WIRELESS CONFIGURATION TOOL

$269.00

WIRELESS DIGITAL CONFIGURATION TOOL FOR ADVANCED REMOTE CONFIGURATION OF ANY WATTSTOPPER DIGITAL LIGHTING MANAGEMENT (DLM) SYSTEM.

BY WATTSTOPPER

Clear
SKU: LMCT-100 Categories: , Tags: , , ,
  • Description
  • Specs
  • Manuals
  • Reviews (0)
  • NON VERIFIED

Description

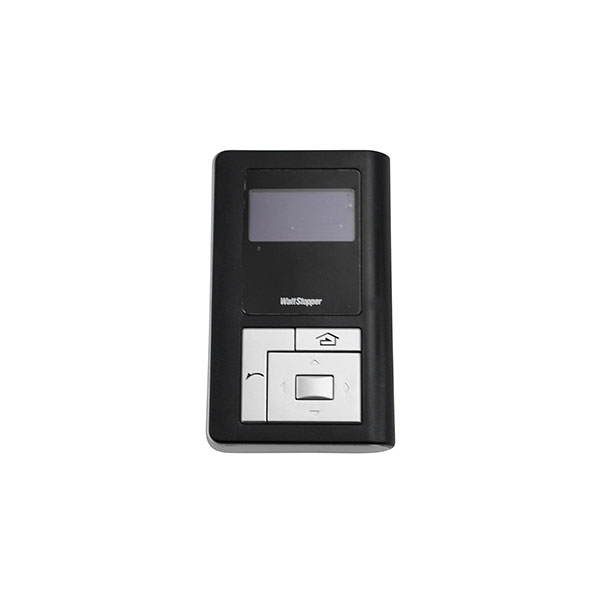

WattStopper LMCT-100-2 DIGITAL WIRELESS CONFIGURATION TOOL. The LMCT-100-2 Wireless Configuration Tool is a handheld tool for advanced remote configuration of any Wattstopper Digital Lighting Management (DLM) system. The tool enables system and device modifications via pushbutton, without ladders or tools, as well as easy duplication of settings between DLM local networks.

Powered by three AAA batteries, the LMCT-100-2 features an
easy-to-read organic LED (OLED) screen and bi-directional
communication with IR-enabled DLM devices. Its intuitive
navigation pad provides a familiar interface for users who can
see the current system parameters of a DLM local network and
make changes by navigating through simple menus. Adjustable
occupancy sensor parameters include sensitivity, time delay
and trigger modes. Load parameter settings (also referred to
as Push n’ Learn™) include blink warning, Auto- or Manualon mode, and re-assigning specific loads to different sensors.
Button configuration options include type (load or scene), mode,
fade times and scene lock. Dimming parameters include low/
high trim, preset level and lamp burn in time. Daylighting
adjustments include operating mode, setpoints, fade times and
time delays. The LMCT is also used to adjust the light level of
dimmed loads. As new DLM products are released, a microUSB port allows for easy firmware updates via software

Features

• Remotely reconfigures and reports DLM occupancy sensor
parameters: PIR and ultrasonic sensitivity; time delay; walk through mode; trigger mode (for dual technology sensors)
• Remotely reconfigures and reports DLM dimming
parameters: load type (dim/switch); low/high trim; preset on
level; lamp burn-in
• Manually adjusts light level of dimmed loads to facilitate scene setting
• Remotely configures, reconfigures and reports DLM photosensor settings: light levels; operating mode (on/off, bi-level, tri-level, dimming); setpoints; time delays; fade times; test mode
• Micro-USB port provided for firmware updates, allowing easy
updates for support of new DLM products
• The product meets the materials restrictions of RoHS

Specifications

Three AAA 1.5 volt batteries (included)
• OLED display 1.4”W x .75”H (36mm x 19mm)
• Infrared (IR) transceiver (36kHz frequency)
• IR range: up to 32’ (10m)
• Mcro-USB port for firmware updating

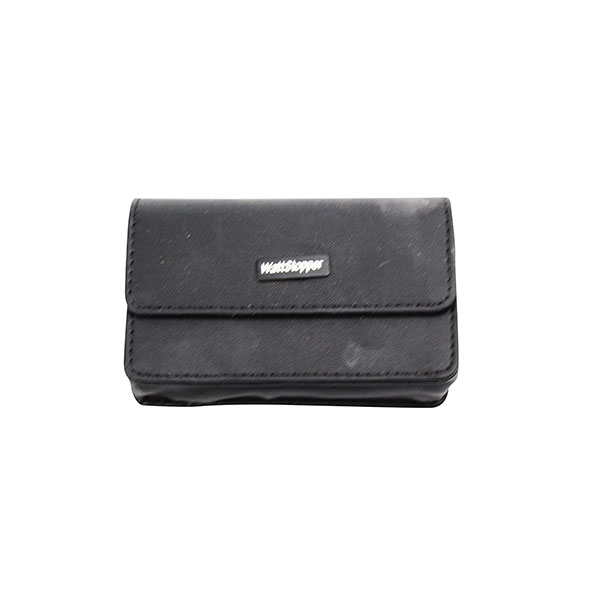

• Includes carrying case with belt clip
• Operating temperature: 32-104°F (0-40°C)
• FCC part 15 compliant
• Five year warranty

For other items like the WattStopper LMCT-100-2 DIGITAL WIRELESS CONFIGURATION TOOL click here.

For more information on WattStopper’s line of lighting control solutions click here.

LITE RITE CONTROLS - PDF  LMCT-100-2 - Lite Rite Controls

Specifications:

  • Three AAA 1.5 volt batteries (included)
  • OLED display 1.4” W x .75”H (36mm x 19mm)
  • Infrared (IR) transceiver (36kHz frequency)
  • IR range: up to 32’ (10m)
  • Includes carrying case with belt clip
  • Operating temperature: 32-104°F (0-40°C)
  • FCC part 15 compliant
  • Five-year warranty
