LMDX-100 – DUAL TECHNOLOGY CORNER MOUNT OCCUPANCY SENSOR

$225.00$240.00

THE LMDX-100 SENSES BOTH LARGE AND SMALL MOTIONS AND IS RECOMMENDED FOR SPACES INCLUDING CONFERENCE ROOMS, PRIVATE OFFICES, CLASSROOMS AND COMPUTER ROOMS WHERE USING JUST ONE DETECTION TECHNOLOGY COULD RESULT IN FALSE TRIGGERS.

Clear
SKU: LMDX-100 Categories: , , , , , , Tags: , , ,

  • Description
  • Specs
  • Manuals
  • Reviews (0)
  • NON VERIFIED

Description

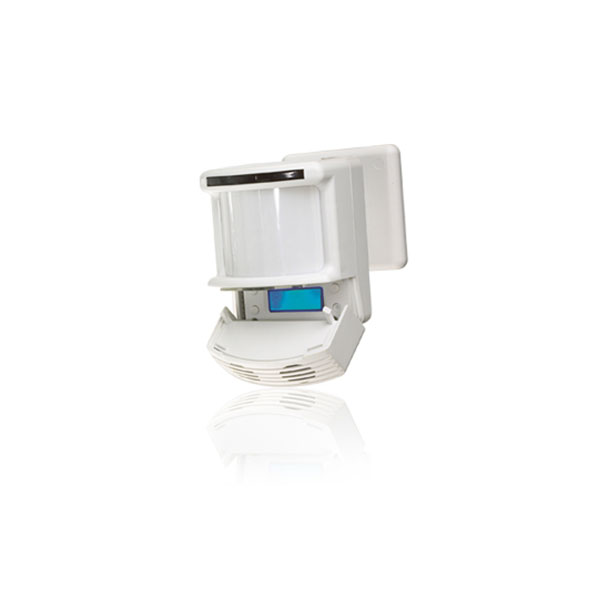

This is the dual technology corner mount occupancy sensor. The LMDX-100 Digital Dual Technology Corner Mount Occupancy Sensor uses both passive infrared (PIR) and ultrasonic technologies to achieve precise occupancy sensing for energy-efficient control of lighting and plug loads. It is a digital sensor, and is part of a Wattstopper Digital Lighting Management (DLM) system. Check out Wattstopper DLM products here.

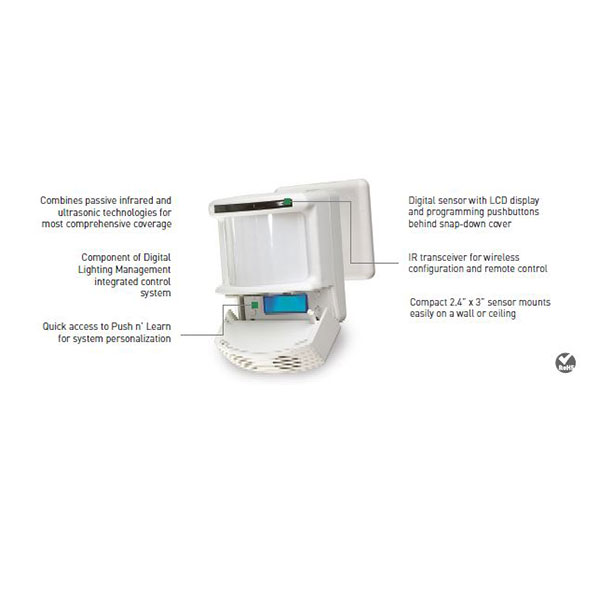

FEATURES:

  • Plug n’ Go™ automatic configuration for quick installation and maximum energy savings
  • Push n’ Learn™ functionality for customization without the need for tools or a PC
  • Digital Lighting Management components plug together on a free-topology Category 5e DLM local network
  • Infrared (IR) transceiver for wireless configuration and control
  • Ultrasonic diffusion technology spreads coverage to a wider area (patented); 40KHz signal
  • Detection Signature Processing eliminates false triggers and provides immunity to RFI and EMI
  • Sensor coverage tested to NEMA Guide Publication WD 7-2000
  • The product meets the materials restrictions of RoHS
  • BAA/TAA-compliant models available

PDF BUTTONLMDX-100 Spec Sheet

Specifications:

  • Input voltage: 24VDC from DLM network
  • Current consumption: 20mA
  • DLM local network connection: 1 RJ45 port via RJ45 plug and coupler (included)

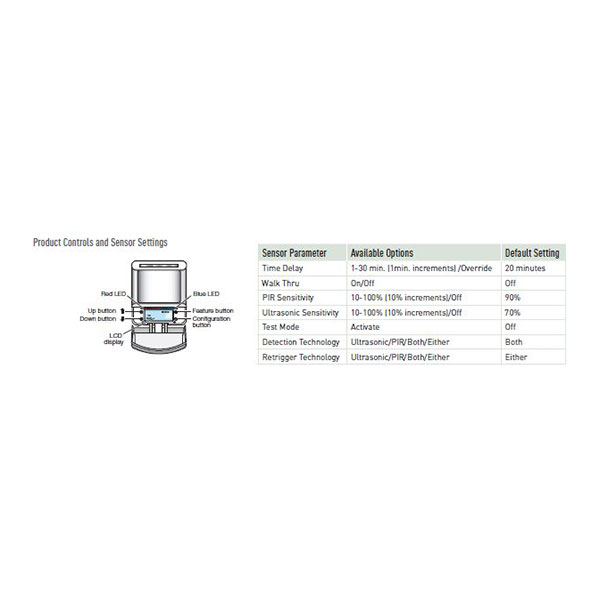

  • LCD display and pushbuttons for setting sensor and system parameters
  • Infrared (IR) transceiver
  • Ultrasonic frequency: 40 kHz
  • Operating conditions: for indoor use only;
  • 32-104°F (0-40°C); 5-95% RH, non-condensing
  • UL and cUL listed
  • FCC part 15 compliant
  • Five-year warranty
