LMLS-400 – SINGLE ZONE SWITCHING & DIMMING CLOSED LOOP DIGITAL PHOTOSENSOR
CLOSED LOOP PHOTOSENSOR THAT MEASURES BOTH DAY AND ELECTRIC LIGHT LEVELS IN ORDER TO AUTOMATICALLY SWITCH OR DIM ONE ZONE OF LIGHTING – BY WATTSTOPPER
- Description
- Specs
- Manuals
- Please visit literite.com for our new store!
- NON VERIFIED
Description

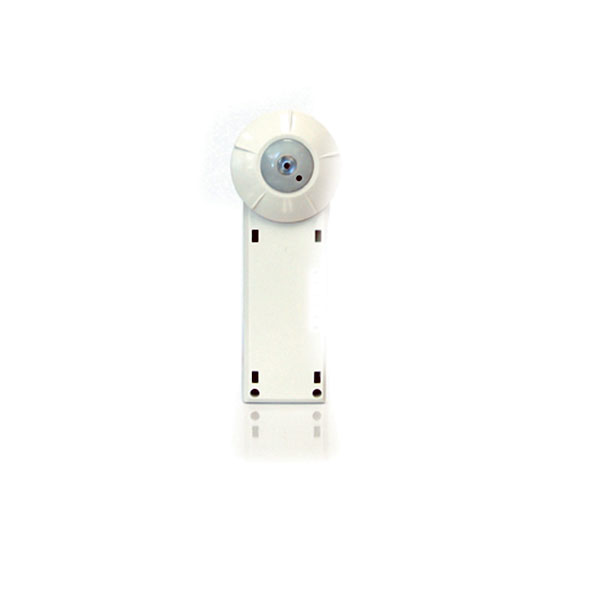

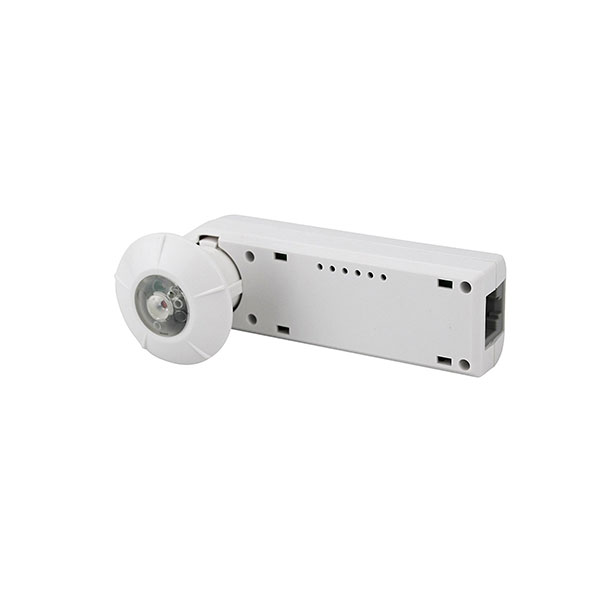

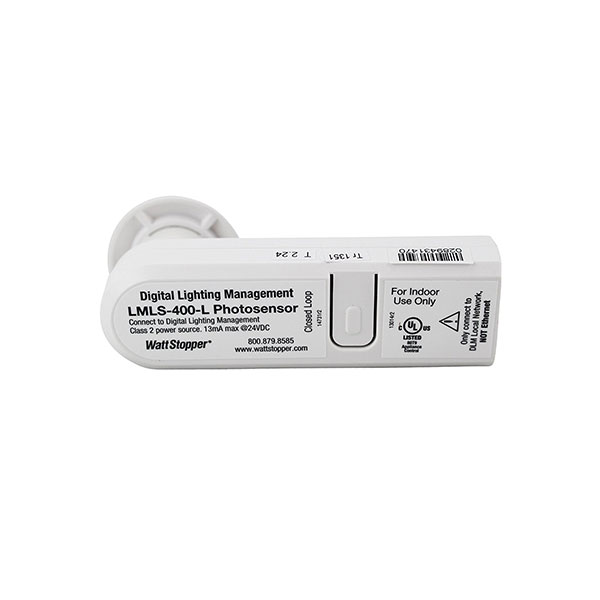

This is the single zone switching & dimming closed loop digital photosensor. The LMLS-400 is a closed loop photo sensor that measures the ambient light level in order to automatically switch or dim one zone of lighting. It is part of a Digital Lighting Management (DLM) system and sends light level signals to control loads connected to DLM on/off or dimming room controllers. The LMLS-400 has a photodiode with an extended range of 1-6,553 foot-candles (fc), and photopic correction to mimic the human eye, for precise measurement of visible light. Check out Wattstopper DLM products here.
FEATURES:
- Digital Lighting Management components plug together on a free-topology Cat 5e DLM local network
- Test mode override of programmed time delay allows easy verification of selected settings
- Load status verification allows confirmation and testing of controlled load
- Infrared (IR) transceiver for wireless configuration and control
- Compatible with DLM wall switches for manual override, if desired
- LED status indicators
- Mounting options for hard ceilings, dropped ceilings and suspended lighting fixtures
- Complies with California Title 24, Section 119 requirements
- The product meets the materials restrictions of RoHS
- BAA/TAA-compliant models available
**See LMLS MB for mounting bracket options**
Specifications:
- Input voltage: 24VDC from DLM local network
- Current consumption: 7mA
- DLM local network connection: 1 RJ45 port
- Digital multi-band photodiode with extended range: 1–6,553 fc (10–70,536 lux)
- Spatial response: 100º
- LED status and configuration indicators
- Infrared (IR) transceiver
- Weight: 1.4 oz. (40 g)
- Operating conditions: for indoor use only; 32–131ºF (0–55ºC); less than 90% RH, non-condensing
- UL and cUL listed
- FCC part 15 compliant
- Five-year warranty
