LMBC-300 – 2 NETWORK BRIDGE MODULE DLM

$115.00

THE LMBC-300 NETWORK BRIDGE IS IDEAL FOR PROJECTS THAT REQUIRE CENTRALIZED MONITORING, CONTROL OR CONFIGURATION – BY WATTSTOPPER

Clear
SKU: LMBC-300 Categories: , , , Tags: , , ,

  • Description
  • Specs
  • Reviews (0)
  • NON VERIFIED

Description

This is the 2 network bridge module DLM. The LMBC-300 Digital Network Bridge provides a segment network connection for a group of Digital Lighting Management (DLM) local network devices. This enables individual DLM local networks to be aggregated into a larger system, which, in turn, can be remotely managed from a DLM Segment Manager or a building automation system (BAS). Check out Wattstopper DLM products here.

FEATURES:

  • Component of Digital Lighting Management integrated control systems
  • Adds segment network functionality a to DLM local network
  • Communicates all DLM local network data and device settings to a Segment Manager and/or LMCS software
  • Easy integration with BAS through use of standard BACnet objects to represent DLM local network device settings and states
  • Class 2 operation and plenum rated housing facilitate simple installation
  • DIN rail mounting clamp provided with the unit to facilitate box or panel mounting
  • UL 2043 plenum rated
  • This product meets the materials restrictions of RoHS
  • BAA/TAA-compliant models available

PDF BUTTONLMBC-300 Spec Sheet

Specifications:

  • Operating voltage: 24VDC from DLM local network
  • Current consumption: 30mA

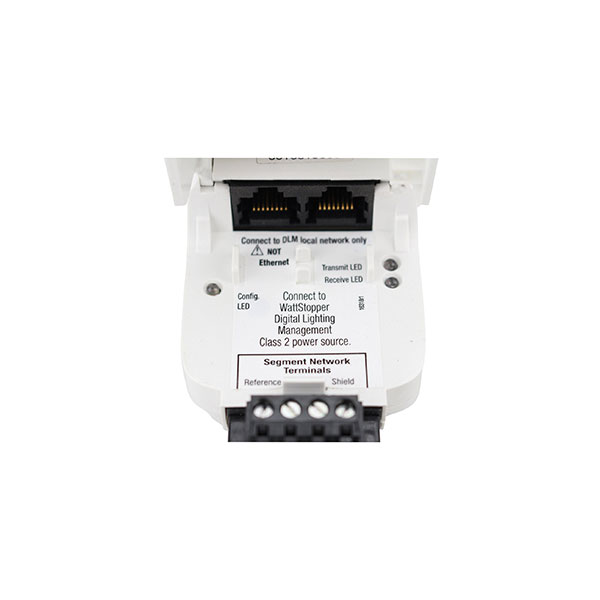

  • DLM local network connection: 2 RJ45 ports
  • Removable terminal block for twisted pair DLM segment network connection
  • Segment network parameters: Wattstopper LM-MSTP wire rated for BACnet MS/TP (RS485)- Linear topology; 4000’ maximum per segment - Up to 40 local networks, or up to 300 DLM devices
  • DIN rail mounting plate provided with the unit for cabinet or panel mounting
  • Status LEDs indicate normal operation
  • Operating conditions: for indoor use only; 32-158°F (0-70°C); 0-95% RH, non-condensing
  • UL and cUL listed (E101196)
  • FCC part 15 compliant
  • Five-year warranty
