WattStopper LMUC-100-2 ULTRASONIC CEILING MOUNT OCCUPANCY SENSOR
THE LMUC-100-2 CAN SENSE MOTION IN AREAS WITH PARTIAL OBSTRUCTIONS, AND IS IDEAL FOR SPACES WITH CEILINGS UP TO TEN FEET HIGH- BY WATTSTOPPER
- Description
- Specs
- Manuals
- Please visit literite.com for our new store!
- NON VERIFIED
Description

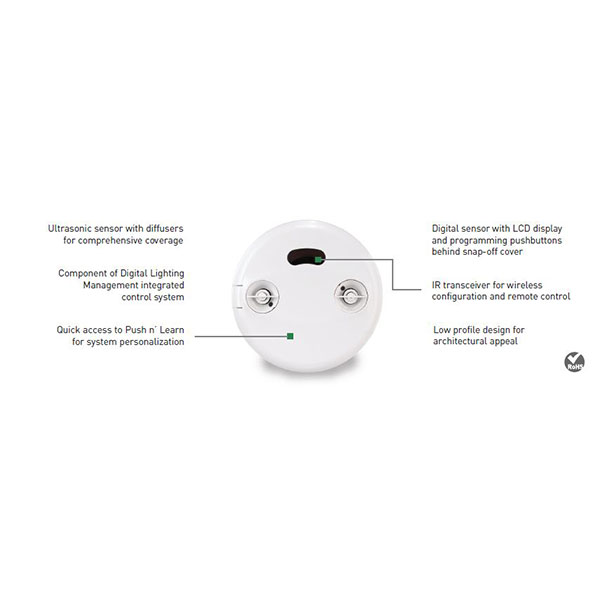

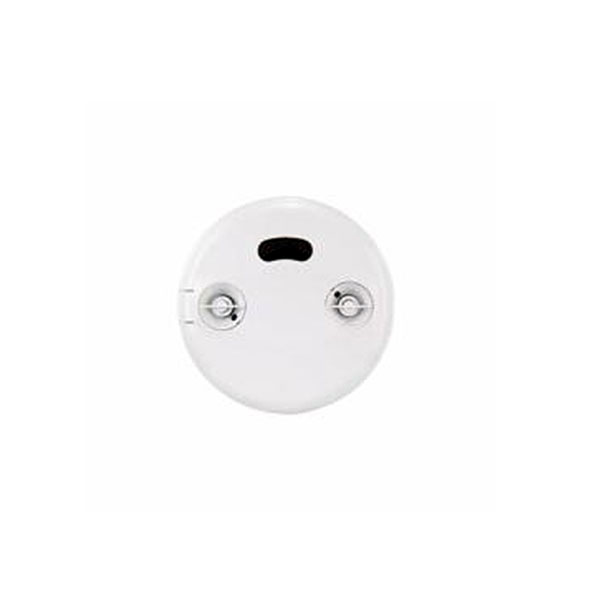

WattStopper LMUC-100-2 ULTRASONIC CEILING MOUNT OCCUPANCY SENSOR. The LMUC-100 low profile Digital Ultrasonic Ceiling Mount Occupancy Sensor uses ultrasonic diffusion technology to
achieve 360° occupancy sensing for energy-efficient control of lighting and plug loads. It is a digital sensor, and is part of a Wattstopper Digital Lighting Management (DLM) system.
Features
• Plug n’ Go™ automatic configuration for quick installation and maximum energy savings
• Push n’ Learn™ functionality for customization without the need for tools or a PC
• Digital Lighting Management components plug together on a free-topology Category 5e DLM local network
• Infrared (IR) transceiver for wireless configuration and control
• Ultrasonic diffusion technology spreads coverage to a wider
area (patented); 40KHz signal
• Detection Signature Processing eliminates false triggers and provides immunity to RFI and EMI
• Sensor coverage tested to NEMA Guide Publication WD 7-2000
• The product meets the materials restrictions of RoHS
• BAA/TAA-compliant models available
Specifications
• Input voltage: 24VDC from DLM network
• Current consumption: 20mA
• DLM local network connection: 2 RJ45 ports

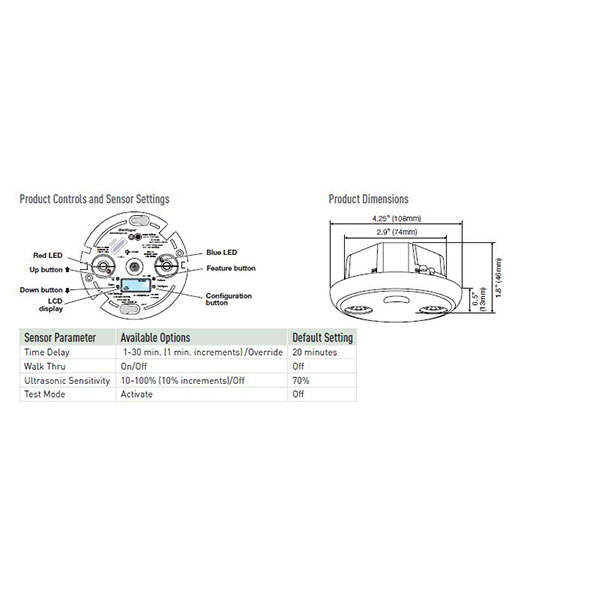

• LCD display and pushbuttons for setting sensor and system parameters
• Infrared (IR) transceiver
• Ultrasonic frequency: 40 kHz
• Coverage: Major motion, 1,000 ft2 (93 m2) Minor motion, 450 ft2 (42 m2)
• Operating conditions: for indoor use only; 32-104°F (0-40°C); 5-95% RH, non-condensing
• UL and cUL listed
• FCC part 15 compliant
• Five year warranty
For other items like the WattStopper LMUC-100-2 ULTRASONIC CEILING MOUNT OCCUPANCY SENSOR click here.
For more information on WattStopper’s line of lighting control solutions click here.
LMUC 100 2 Spec SheetSpecifications:
- Input voltage: 24VDC from DLM network
- Current consumption: 20mA
- DLM local network connection: 2 RJ45 ports
- LCD display and pushbuttons for setting sensor and system parameters
- Infrared (IR) transceiver
- Ultrasonic frequency: 40 kHz
- Coverage: Major motion, 1,000 ft2 (93 m2) Minor motion, 450 ft2 (42 m2)
- Operating conditions: for indoor use only; 32-104°F (0-40°C); 5-95% RH, non-condensing
- UL and cUL listed
- FCC part 15 compliant
- Five-year warranty
NON VERIFIED CONTENT
