WattStopper LMSW-100 SERIES DIGITAL WALL SWITCH

RECOMMENDED FOR VIRTUALLY ALL APPLICATIONS, INCLUDING OFFICES, CONFERENCE ROOMS AND CLASSROOMS. IDEAL FOR ANY AREA WHERE MANUAL ON/OFF CONTROL IS DESIRED. PERFECT FOR APPLICATIONS REQUIRING MULTI-WAY CONTROL – BY WATTSTOPPER

Clear
  • Description
  • Specs
  • Manuals
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

WattStopper LMSW-100 SERIES DIGITAL WALL SWITCH. LMSW-100 Series Wall Switches are low voltage devices for
energy-saving manual on/off control of one or more loads from one or more locations. They are part of a Digital Lighting Management (DLM) system and can control any load(s) connected to DLM room controllers. LMSW-100 Series Switches operate on Class 2 power supplied to a DLM local network by one or more room controllers. The switches send a digital signal for on or off whenever a pushbutton is pressed by a user. Plug n’ Go™ automatic configuration assigns each load to a switch button upon
system startup. If the number of buttons equals the number of loads, each button operates one load. If there are more loads than buttons, the last button controls multiple loads. Any extra buttons are unassigned. When multiple switches are installed, default operation is for multi-way control; each switch controls all of the loads on the system. Button assignments may be quickly reconfigured using Push n’ Learn™. Button configuration may be changed from load control to scene control using DLM configuration tools.

Features

• Hidden configuration button for easy access to Push n’ Learn
• Digital Lighting Managment components plug together on a free-topology Category 5e DLM local network
• Infrared (IR) transceiver for wireless configuration and control

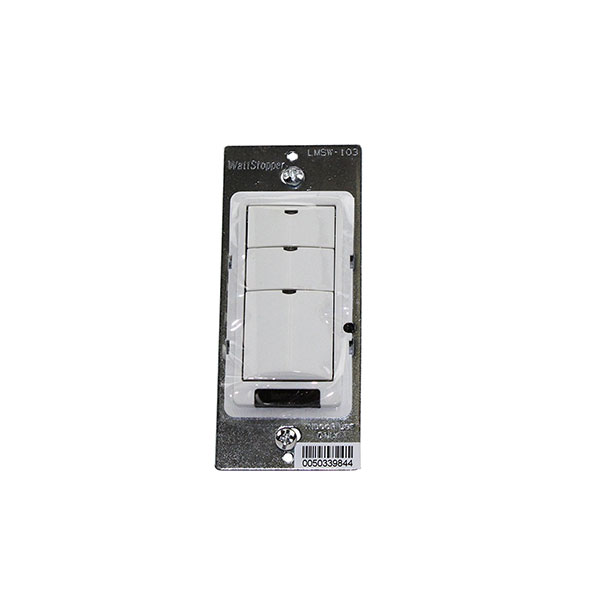

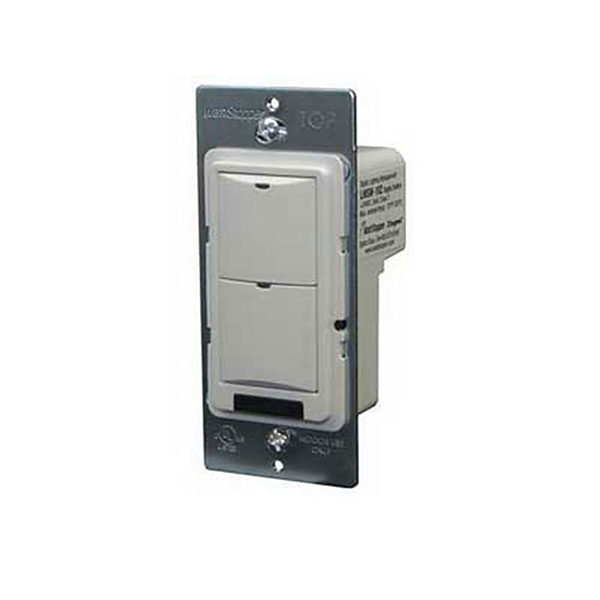

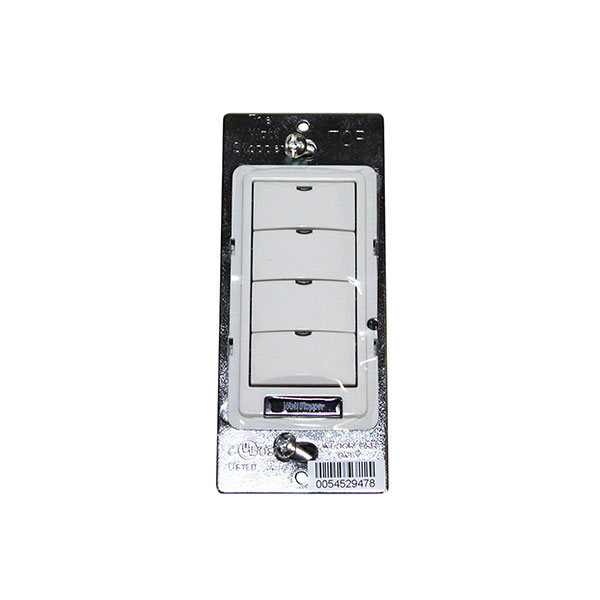

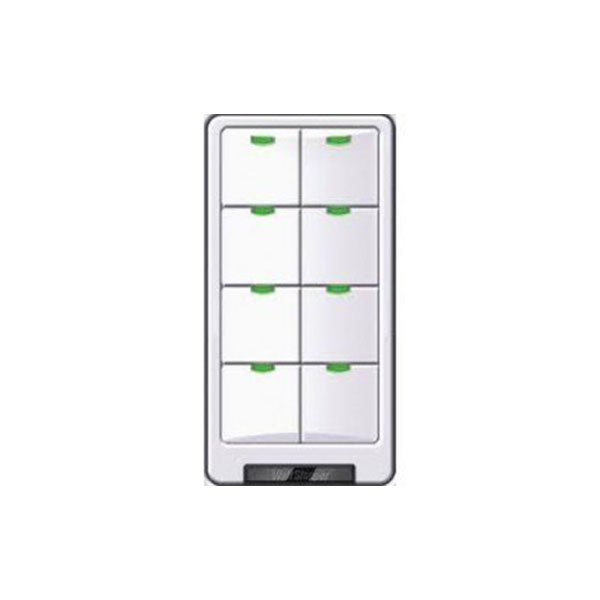

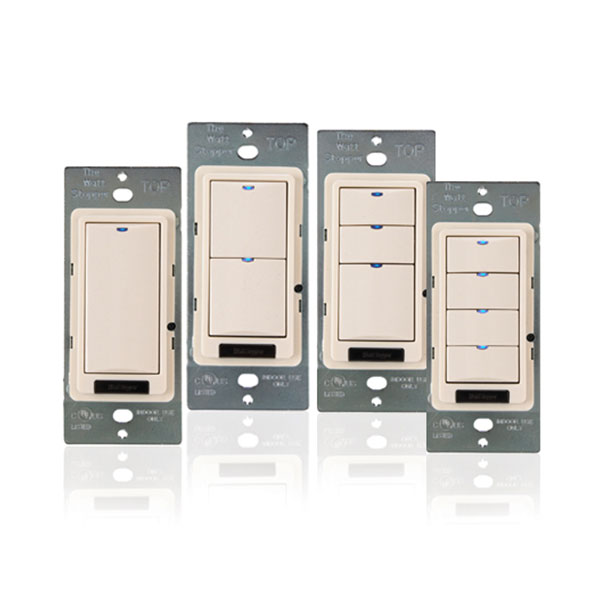

• Sleek single gang devices fit decorator wall plates; 1-, 2-, 3-, 4-, and 8-button models
• Each button can control individual or multiple loads, or one scene; LED indicates status
• Each switch button can be used to dim the load
• Switches may be used for multi-way control
• Six color options and custom engraving options; standard buttons may be replaced in the field
• The product meets the materials restrictions of RoHS
• BAA/TAA-compliant models available

Specifications

• Input voltage: 24VDC from DLM local network
• Current consumption: 5mA
• DLM local network connection: 2 RJ45 ports
• 1, 2, 3, 4 or 8 control buttons, each with LED status indicator
• Hidden configuration button to access
• Push n’ Learn
• Infrared (IR) transceiver
• Operating conditions: for indoor use only; 32-131°F (0-55°C); 5-95% RH, non-condensing
• UL and cUL listed
• FCC part 15 compliant
• Five year warranty

For other items like the WattStopper LMSW-100 SERIES DIGITAL WALL SWITCH click here.

For more information on WattStopper’s line of lighting control solutions click here.



LITE RITE CONTROLS - PDF WS-Cutsheet-LMSW-100-Wall-Switches

Specifications:

  • Dimension: 4.1'' H x 1.3'' W x 1.3'' D
  • 24VDC from DLM local network at 5mA
  • Infrared (IR) transceiver
