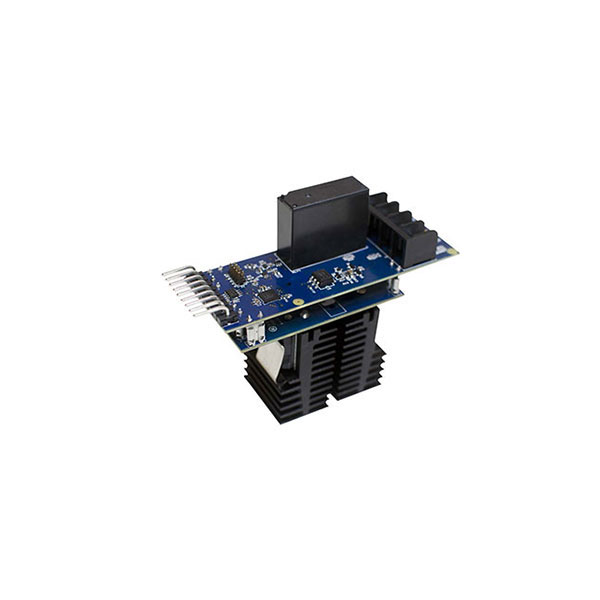

DIM1-2W/3W-120/277 – LINE VOLTAGE & 3-WIRE DIMMING MODULE

Description

This is the Line Voltage & 3-Wire Dimming Module.

• Software configurable for either forward or reverse phase control.
• Utilize a relay ahead of the dimmer for complete disconnection from the source voltage when the dimmer is off.
• Dimming Modules are completely compatible with 3-wire fluorescent dimming ballasts (Hot, Dimmed Hot and Neutral).
• Dimming Modules communicate with the Building Management Server to report:
  • The dimmer’s current dimming level (0-100% on)
  • The line source state (available or off)
  • The communication status (active / not available)
  • The module’s “health” (if the module is defective)

 DIM1-2W/3W-120/277 Spec Sheet

Specifications:

• 277VAC
• 2-Wire Line Voltage Dimming or 3-Wire Fluorescent Dimming Ballast
• Uses #10 AWG wire

 DIM1-2P/3P-120/277 Wiring Diagram
