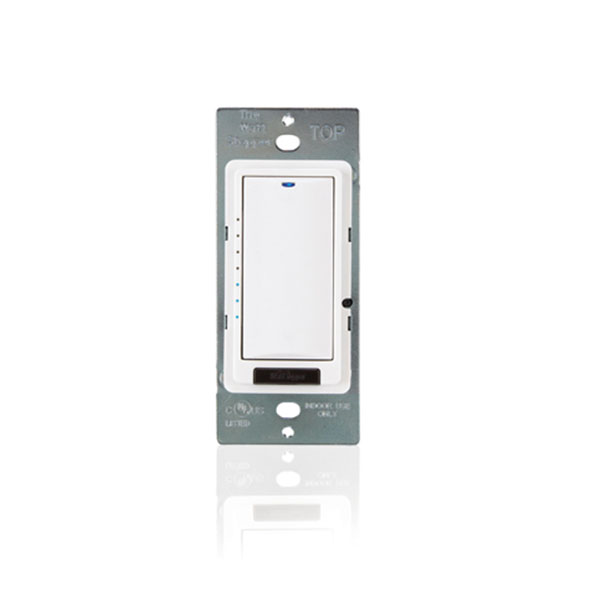

WattStopper LMDM 101 DIMMING WALL SWITCH

Call for Price

IDEAL FOR USE IN APPLICATIONS WHERE DIMMING CONTROL IS DESIRED, SUCH AS CONFERENCE AND BOARD ROOMS, CLASSROOMS, TRAINING CENTERS AND PRIVATE OFFICES. USED TOGETHER WITH THE LMSW-105 DLM SCENE SWITCH, THE LMDM-101 WORKS AS PART OF A FLEXIBLE SCENE-BASED PRESET DIMMING SYSTEM – BY WATTSTOPPER

Clear
SKU: LMDM 101 Categories: , , , Tags: , , ,

  • Description
  • Specs
  • Manuals
  • Reviews (0)
  • NON VERIFIED

Description

WattStopper LMDM 101 DIMMING WALL SWITCH. This is the dimming wall switch. The LMDM-101 Dimming Wall Switch is a low voltage device for dimming control of one or more lighting loads. It is part of a Digital Lighting Management (DLM) system and can dim load(s) connected to DLM dimming room controllers and switch load(s) connected to DLM on/off room controllers. Check out Wattstopper DLM products here.

FEATURES:

  • Hidden configuration button for easy access to Push n’ Learn
  • Used with DLM dimming room controller
  • Digital Lighting Managment components plug together on a free-topology Category 5e DLM local network
  • Provides full function dimming control in multi-way applications, such as 3-way, 4-way, and beyond
  • Infrared (IR) transceiver for wireless configuration and control
  • LED status indicator
  • Sleek single gang device fits decorator wall plates
  • Six color options and custom engraving options; standard buttons may be replaced in the field
  • The product meets the materials restrictions of RoHS
  • BAA/TAA-compliant models available

Specifications

Input voltage: 24VDC from DLM local network
• Current consumption: 5mA
• DLM local network connection: 2 RJ45 ports
• Control button with LED status indicator
• 7-LED dimming level indicator
• Hidden configuration button for access to Push n’Learn mode
• Infrared (IR) transceiver
• Operating conditions: for indoor use only; 32-131°F (0-55°C); 5-95% RH, non-condensing
• UL and cUL listed
• FCC part 15 compliant
• Five year warranty

For other items like the WattStopper LMDM 101 DIMMING WALL SWITCH click here.

For more information on WattStopper’s line of lighting control solutions click here.

PDF BUTTONWS-Cutsheet-LMDM-101-Dimming-Wall-Switch_30705

SPECIFICATIONS:

  • Input voltage: 24VDC from DLM local network
  • Current consumption: 5mA
  • DLM local network connection: 2 RJ45 ports
  • Control button with LED status indicator
  • 7-LED dimming level indicator
  • Hidden configuration button for access to Push n’Learn mode
  • Infrared (IR) transceiver
  • Operating conditions: for indoor use only; 32-131°F (0-55°C); 5-95% RH, non-condensing
  • UL and cUL listed
  • FCC part 15 compliant
  • Five-year warranty
