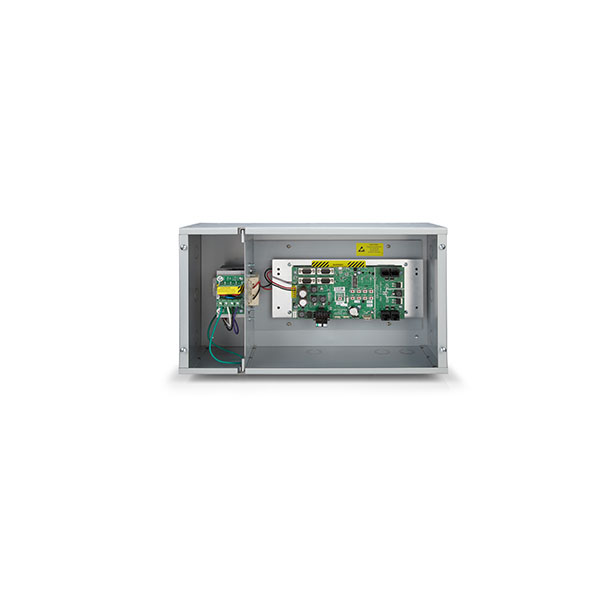

LMZC-301 – ZONE CONTROLLER

$992.00 $893.00

ZONE CONTROLLER IDEAL FOR APPLICATIONS WITH A LARGE NUMBER OF DLM FIXTURE CONTROLLERS – FROM WATTSTOPPER

SKU: LMZC-301 Categories: , , , , Tags: , , ,

  • Description
  • Specs
  • Manuals
  • Reviews (0)
  • NON VERIFIED

Description

This is the Wattstopper zone controller. The LMZC zone controller provides power and connectivity to Digital Lighting Management (DLM) fixture controllers as well as switches, occupancy sensors, daylight sensors, and input modules. It is the foundation of a DLM local network for fixture controllers, and includes integral segment network connectivity. The zone controller can be used to enable the automation of lighting functions across a facility. Check out Wattstopper DLM products here.

FEATURES:

  • Two free-topology DLM Category 5e local networks for DLM load controllers, sensors, switches, and LMIO series input modules
  • Supports up to 94 DLM communicating devices and up to 64 connected loads
  • LMCT-100 handheld configuration tool recommended for setup
  • Runs event-based schedule routines independently (does not require BAS or Segment Manager)
  • Supports astronomical, time-based, and photocell-based event types
  • This product meets the materials restrictions of RoHS





PDF BUTTONLMZC-301 Spec Sheet

  • Input voltage: 115/277VAC; 60 Hz
  • Class 2 connection to two independent DLM local networks: 24VDC output, up to 250mA across 2 RJ45 ports per local network, or up to 400mA per network with optional LMPB- 100 power booster (max. 800mA with two LMPB-100s installed)
  • Free-topology DLM local network segments may include digital load controllers, switches and sensors; Cat 5e cable, 150’ per device to 1,000’ max, per each local network
  • Removable terminal for connection to DLM segment network (BACnet MS/TP)
  • Segment network parameters: Wattstopper LM-MSTP wire (required)
  • Linear topology; 4000 ft. maximum per segment
  • Operating conditions: for indoor use only; 32-122°F (0-50°C); 5-95% RH, non-condensing
  • UL and cUL listed (E207852)
  • FCC part 15 compliant
  • Five-year warranty
