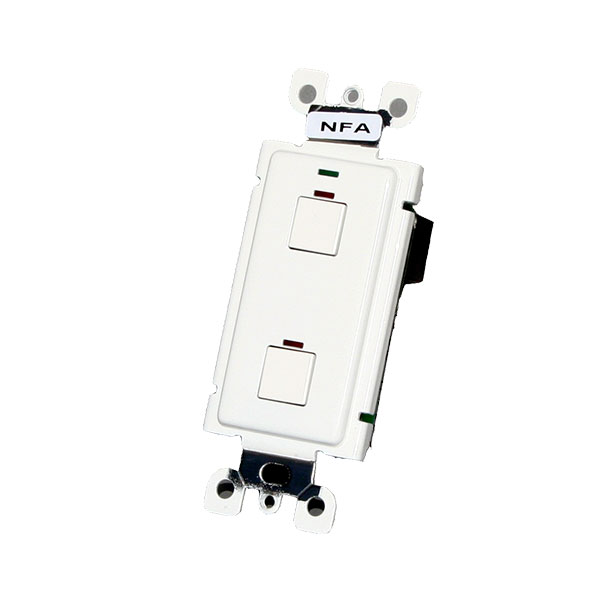

CHELSEA-CH2-FRONT

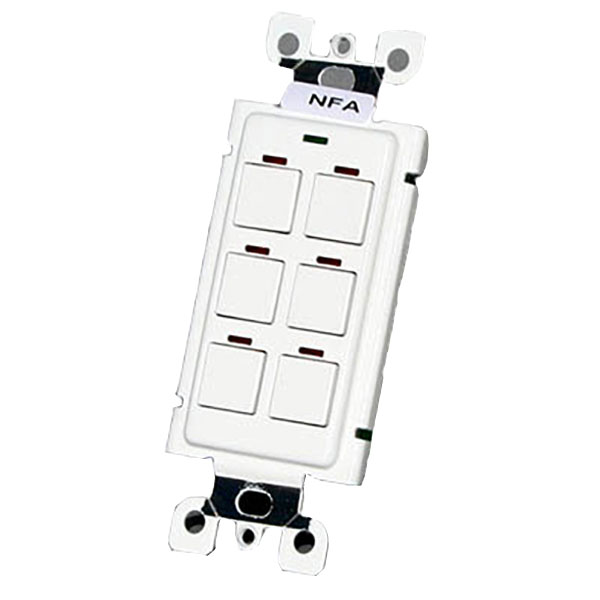

6-BUTTON-CHELSEA-PIC

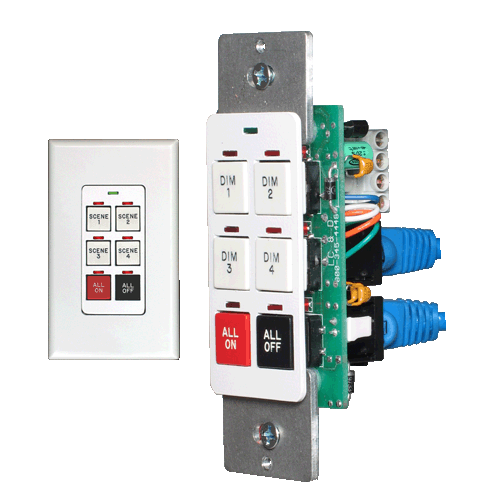

closeup_chelseadigital

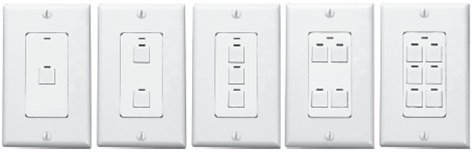

Chelsea Switch Options
CHELSEA-CH2-FRONT
6-BUTTON-CHELSEA-PIC
closeup_chelseadigital
Chelsea Switch Options

CH – LC&D CHELSEA DIGITAL SWITCH

This item has been discontinued. Shop alternates at the link below:

Control Panels

Chelsea Digital Multi-Button Switch Compatible with LC&D Blue Box and GR2400 Panels

**Standard Colors/Pricing are White on White

Visit our new shop at LITERITE.COM to shop lighting controls!
SKU: CH xx BWH PWH Categories: , , , Tags: , , , , ,
  • Description
  • Specs
  • Manuals
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

This is the LC&D chelsea digital switch. Check out our Acuity products here.

  • Chelsea Switch connects to LC&D BlueBox And GR2400 via Cat5
  • Programmable via DTC (Digital Time Clock) for On/Off, Override and Dimming (LTD Only)
  • Custom button engraving
  • Pilot light to indicate relay status
  • Able to link to up to 127 digital addresses via Cat. 5 cable

PDF BUTTONChelsea Switch Spec Sheet

Specifications:

  • Dimensions: 1.3" W x 4" H x 1.3" D
  • Mounting: 2.25" deep-switch box
  • Function: ON, OFF, Mixed, Group Control, Toggle, Scene Control
  • Power supply inputs: Powered via Cat 5 from Blue Box or GR 2400 bus
  • Programming: Via DTC or with GX2 lighting control software
  • Does not include faceplate

PDF BUTTONChelsea Switch Installation Guide

PDF BUTTONBlue Box LTD Wiring Diagram
