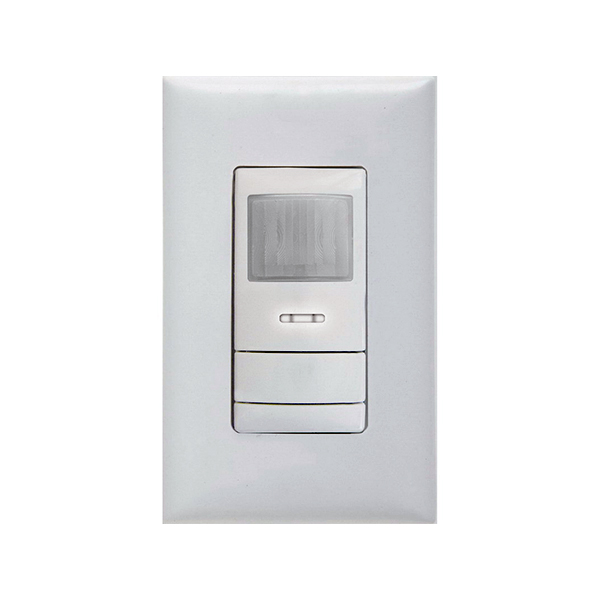

WSX – Wall Occupancy PIR Sensor Switch
Call for Price
Wall switch occupancy sensors from WSX family.
- Reviews (0)
- NON VERIFIED
- Auto- On Wall Occupancy Sensor PIR with Soft Push Button

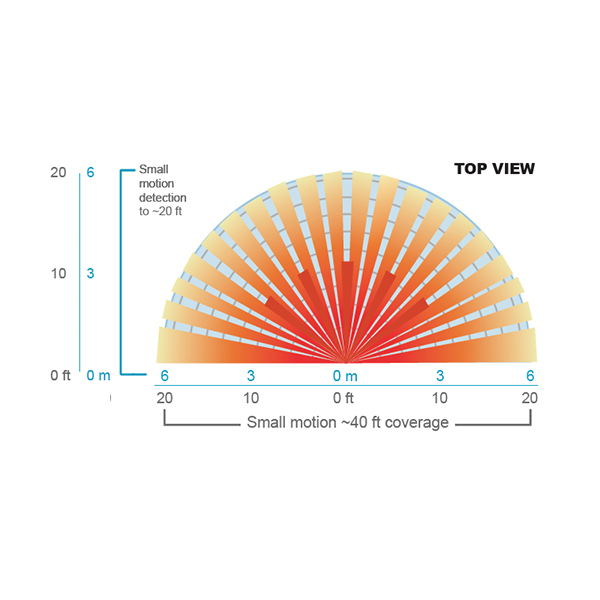

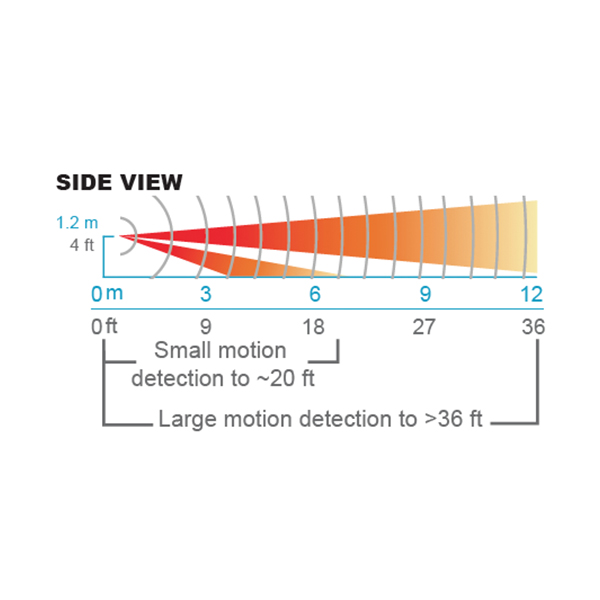

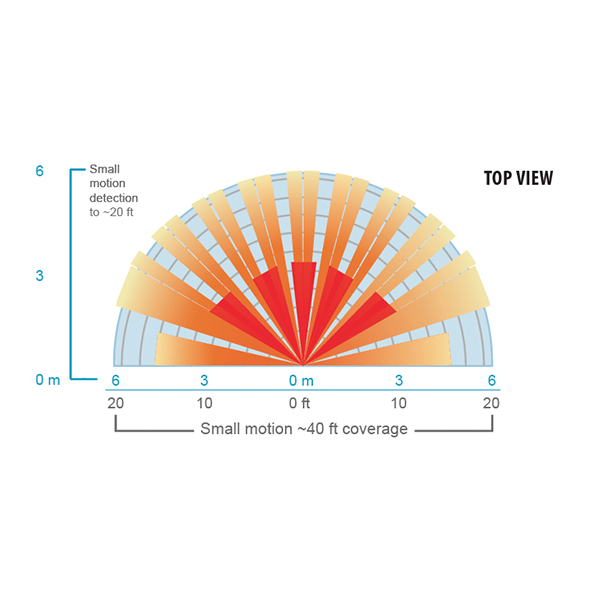

- Small Motion Detection up to 20 Ft, Large Motion Detection up to 36 Ft
- Push-button programmable without removing cover plate – adjustable time delays & operating modes
- Auto-on (default) or Vacancy/ (Nightlight is Manual On)
- Single Relay Push Button
- Compatible w/LEDs, electronic & magnetic ballasts, CFLs, & incandescents
- Pre-configured for wiring without a neutral but is field configurable for code with neutral
- Integrated Photocell (disabled by default) prevents light from turning on if sufficient daylight is present – not available in Nightlight versions
- Applications: Small Offices, Small Rest Rooms, Closets, Small Enclosed Spaces
- Dimensions: 2.74”H x 1.68”W x 1.63”D
- 120/277VAC at 50/60Hz
- Maximum Load/Pole: (Relay) 800W @ 120VAC, 1200W @ 277VAC, 1500W @ 347VAC
- Single Gang Switch Box
- Mounting Type: Wall (Cover Plate not Included in Price)
- Product Color Options: White and Ivory (Standard Buy Online), Call for: Black, Gray, Light Almond, Red

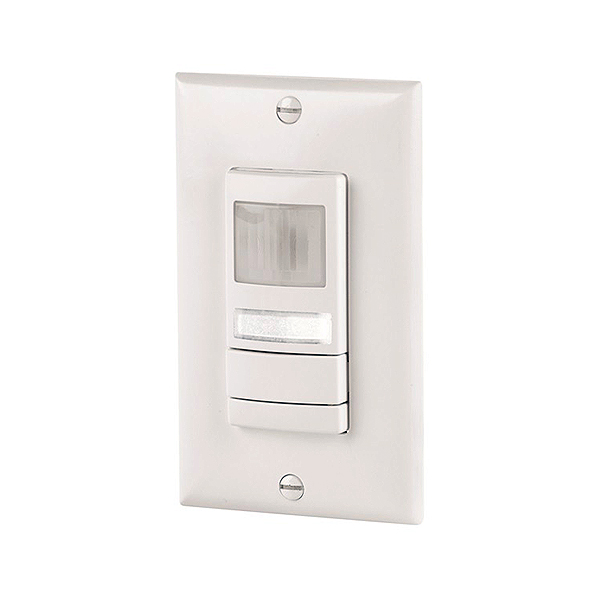

- Product Variation: Nightlight "-NL"
- Listing: UL
