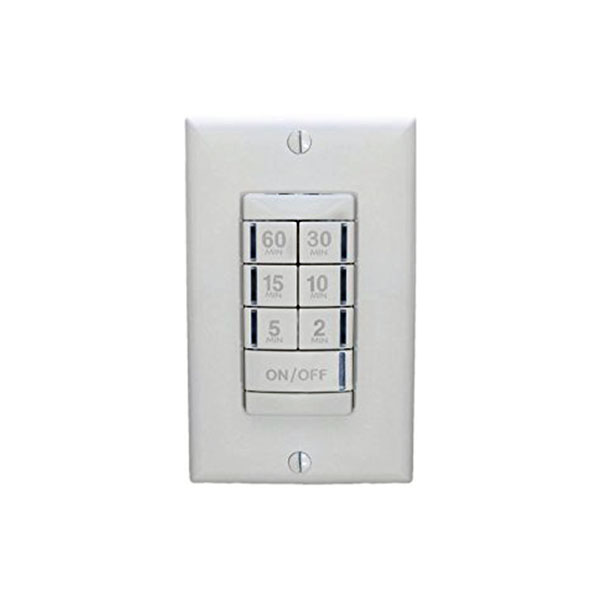

PTS 60 – PROGRAMMABLE TIMER SWITCH (60 MIN)

Call for Price

PROGRAMMABLE TIMER SWITCH (60 MIN) SENSOR SWITCH

Clear
SKU: PTS 60 Categories: , , Tags: ,

  • Description
  • Specs
  • Manuals
  • Reviews (0)
  • NON VERIFIED

Description

The PTS 60 and PTS 720 Series Electronic Auto Shut-off Timer Switches provide a simple to use and simple to apply lighting control alternative to wall switch occupancy sensors. These elegant decorator style wall stations each provide six preset countdown timer selections as well as an on/off push-button

  • Self-Contained Relay
  • Interchangeable Hot & Load Wires – Impossible to Wire Backwards
  • No Neutral Connection Required
  • Self-Grounding Mounting Strap
  • No Minimum Load Requirement
  • Push-Button Programmable w/o Removing Switch Plate
  • Fixed or Adjustable Preset Times
  • Optional Audible Timeout Warning at 45, 30, and 15 sec
  • Optional Flicker Timeout Warning at 2 and 1 min
  • Continuous LED Flash for Last 30 sec of Button’s Time Setting
  • Green On/Off Switch Status LED
  • Green LED Time Indicators

PDF BUTTONPTS SPEC SHEET

Specifications:

  • Dimensions: 4.2''H x 1.8''W x 1.4''D
  • 120/277 VAC at 50/60 Hz
  • Maximum Load:  10 AMPS @ 30 VDC, 800 W @ 120 VAC, 1200 W @ 277 VAC
  • Minimum Load: NONE
  • Motor Load: 1/4 HP
