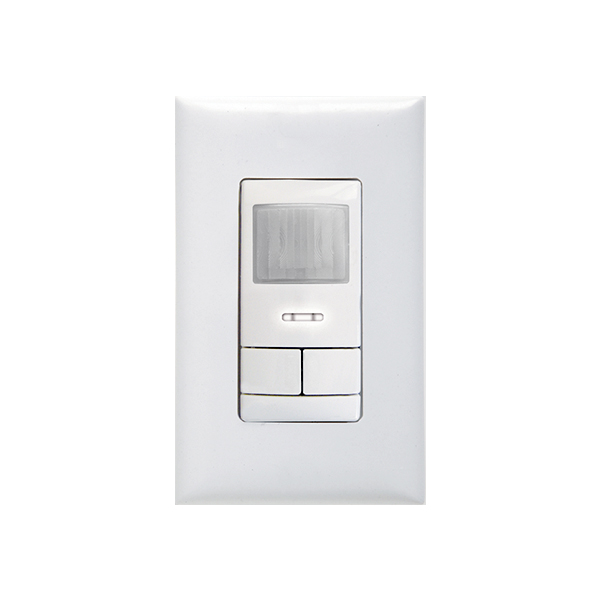

WSX 2P – Wall Occupancy PIR Dual Relay Sensor Switch

Wall switch PIR occupancy dual relay sensor from WSX family.

This product is currently out of stock and unavailable.

  • Description
  • Specs
  • Manuals
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

  • Auto- On Wall Occupancy Sensor PIR with Soft Push Button

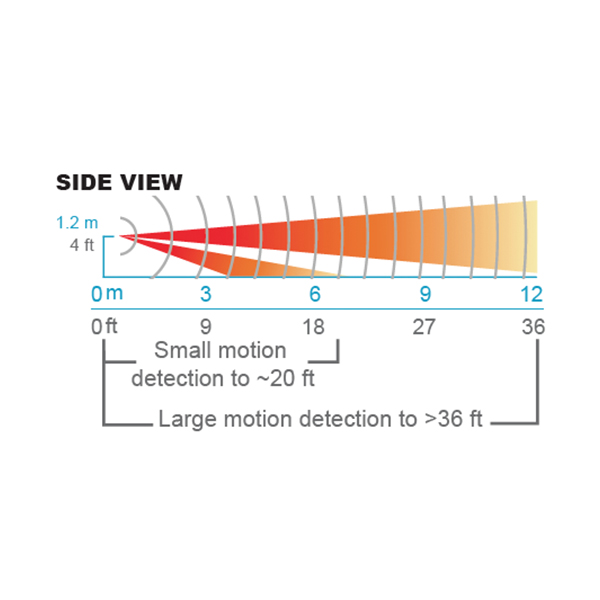

  • Small Motion Detection up to 20 Ft, Large Motion Detection up to 36 Ft
  • Push-button programmable without removing cover plate – adjustable time delays & operating modes
  • Dual Relay Push Button
  • Pole 1 Auto-On / Pole 2 Vacancy
  • Compatible w/LEDs, electronic & magnetic ballasts, CFLs, & incandescents
  • Pre-configured for wiring without a neutral but is field configurable for code with neutral
  • Integrated Photocell (disabled by default) prevents light from turning on if sufficient daylight is present – not available in Nightlight versions
  • Applications: Small Offices, Small Rest Rooms, Closets, Small Enclosed Spaces

PDF BUTTONWSX Spec Sheet

Specifications:

  • Dimensions: 2.74”H x 1.68”W x 1.63”D
  • 120/277VAC at 50/60Hz
  • Maximum Load/Pole: (Relay) 800W @ 120VAC, 1200W @ 277VAC, 1500W @ 347VAC
  • Single Gang Switch Box
  • Mounting Type: Wall (Cover Plate not Included in Price)
  • Product Color Options: White and Ivory (Standard Buy Online), Call for: Black, Gray, Light Almond, Red
  • Product Variation: Nightlight "-NL"
