LMRC-210 SERIES – 0-10 VOLT DIMMING ROOM CONTROLLER

Description

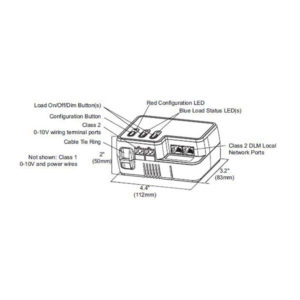

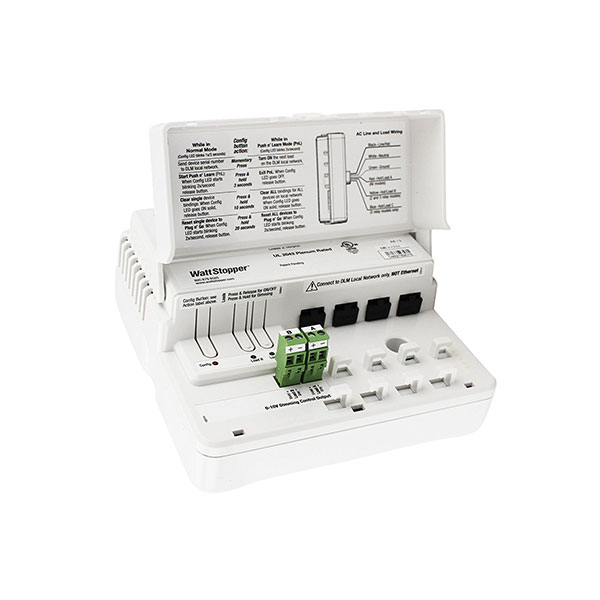

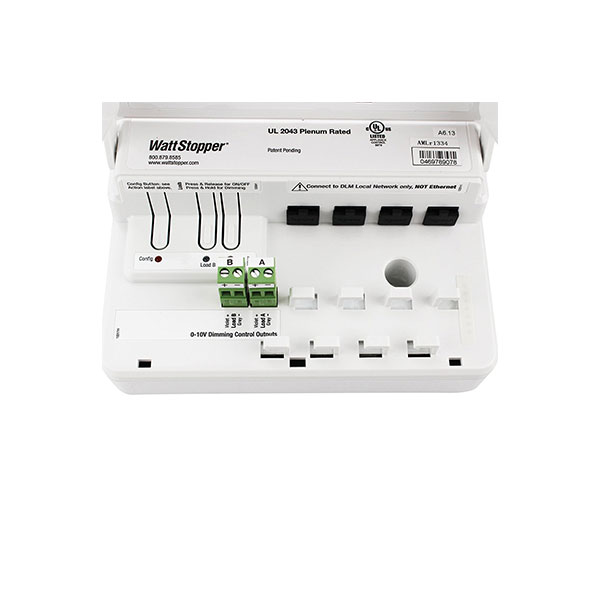

This is the 0-10 volt dimming room controller. LMRC-210 Series Digital Room Controllers include one, two or three relay(s) to switch a total of 15 or 20 amps, a high-efficiency switching power supply and one 0-10 volt output per relay for control of dimmable loads including electronic ballasts (Advance Mark 7, or equivalent). They are the foundation of a Wattstopper Digital Lighting Management (DLM) system, and allow integration of occupancy sensors, daylighting controls and switches for energy-efficient lighting control. Check out Wattstopper DLM products here.

FEATURES:

• Plug n’ Go™ automatic configuration for quick installation and maximum energy savings
• Push n’ Learn™ functionality for personalization without the need for tools or a PC
• Digital Lighting Management components plug together on a free-topology Cat 5e DLM local network
• On/Off/Dim local override button for each load
• LED indicates status of each load
• 0-10V signal opens on loss of LMRC power
• Integral current monitoring of total connected load
• Optional lamp burn in; 12 or 100 hours
• 4 RJ45 ports with integral strain relief
• Zero-crossing circuitry for each relay for reliability and increased product life
• UL 2043 plenum rated
• The product meets the materials restrictions of RoHS
• BAA/TAA-compliant models available

LMRC 210 Series Cutsheet

SPECS:

• Voltage: Single Phase 120/230/240/277VAC or 347VAC; 50/60Hz
• Maximum 20A combined load per Room Controller; each relay rated for: @ 120/277V, 20A ballast or incandescent or1Hp motor load; @ 347V, 15A ballast only
• Class 2 dimming control signal: 0-10VDC, sinks up to 100mA per channel for control of compatible ballasts (50 if each sources 2mA)
• Class 2 output to DLM local network: 24VDC, up to 250mA across 4 RJ45 ports
• DLM local network parameters: Maximum current: 800mA
• Category 5e cable: 150’ per device to 1,000’ max.
• Up to 64 loads
• Up to 48 communicating devices
• Maximum 4 LMPB-100, LMPL-101 or LMRC-100 Series Room Controllers
• Operating conditions: for indoor use only;@ 120/277V: 32-158°F (0-70°C), @ 347V 32-140°F (0-60°C); 5-95% RH, non-condensing
• UL (E101196) and cUL listed
• FCC part 15 compliant
• Five-year warranty
