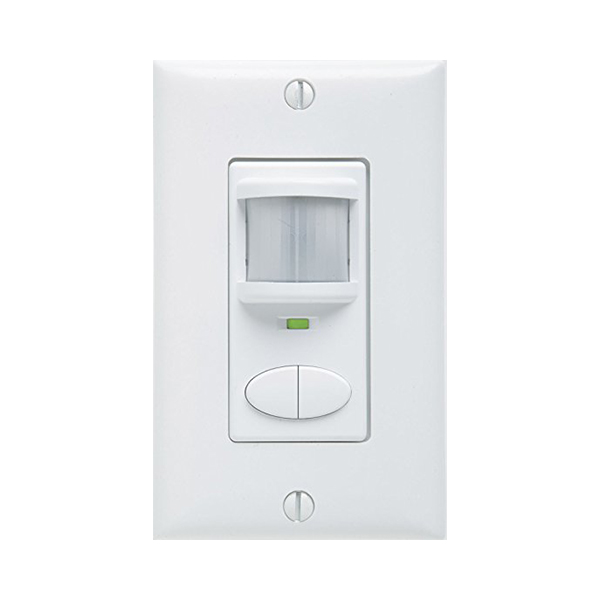

WSD 2P – PIR WALL OCCUPANCY SENSOR SWITCH W/ DUAL RELAY

Wall Switch Decorator style Passive Infrared (PIR) Dual Relay sensor from WSD family.

This product is currently out of stock and unavailable.

  • Description
  • Specs
  • Manuals
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

  • Auto-On
  • Dual Relay
  • PIR Coverage (Passive Infrared)

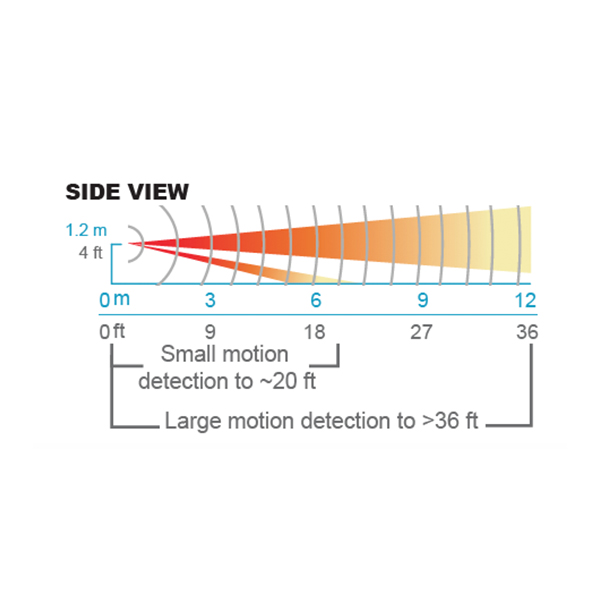

  • Small Motion Detection up to 20 ft, Large Motion Detection up to 36 Ft
  • Push-Button Programmable w/o Removing the Switch Plate
  • Adjustable Time Delay
  • Compatible w/ Electronic & Magnetic Ballasts, CFLs, LEDs, & Incandescents
  • Self-Grounding Mounting Strap
  • Interchangeable Hot & Load Wires
  • No Neutral Required
  • No Minimum Load Requirements

Applications: Restrooms, Small Offices, Small Spaces, Closets

PDF BUTTONWSD SPEC SHEET

Specifications:

  • Dimensions: 2.74''H x 1.68''W x 1.63''D
  • Single Gang Switch Box
  • Mounting Type: Wall
  • 120/277/347 VAC at 50/60 Hz
  • MAXIMUM LOAD (Single Phase) - 800 W @ 120 VAC , 1200 W @ 277 VAC , 1500 W @ 347 VAC
  • Listing: UL
  • Product Color Options: White and Ivory (Standard Buy Online), Call for: Black, Gray, Light Almond, Red
