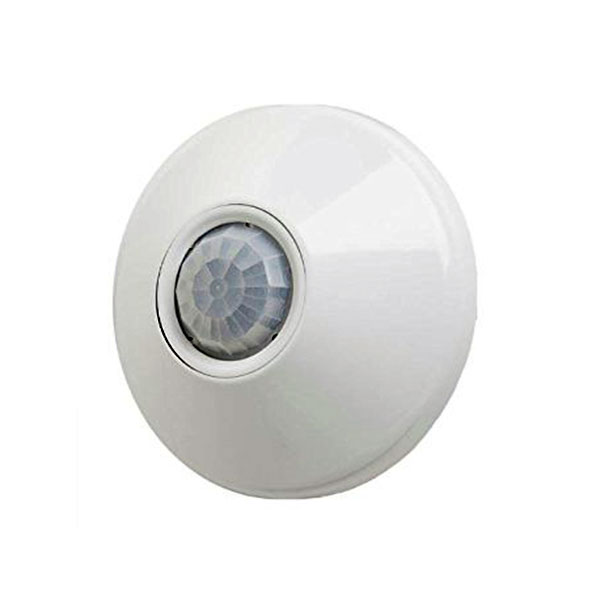

CM 11 – CEILING MOUNT OCCUPANCY SENSOR w/ HALLWAY COVERAGE

Call for Price

FINISHED CEILING MOUNT OCCUPANCY SENSORS WITH HALLWAY COVERAGE FROM SENSOR SWITCH

Clear
SKU: N/A Categories: , , Tags: , ,

  • Description
  • Specs
  • Manuals
  • Reviews (0)
  • NON VERIFIED

Description

The CM family of ceiling mount occupancy sensors provide a range sensor solutions for applications
with finished ceilings (e.g. ceiling tiles, sheetrock, plaster). CM family sensors utilize 100%
digital Passive Infrared (PIR) detection and are available with several lens options, providing
flexibility for multiple mounting height and coverage pattern requirements. Dual technology (PDT)
occupancy detection can also be added as an option for applications where occupants are stationary for
long periods of time.
FEATURES
• 360° coverage pattern
• Push- button programmable, adjustable time delays, and multiple operating modes
• 100 hr. lamp burn-in timer
• No field calibration or sensitivity adjustments required
• Convenient test mode
• Green LED indicator

PDF BUTTONCM SPEC SHEET

Specifications:

  • Dimensions: 4.55'' Diameter and 1.55'' Depth
  • Mounting: 3.5'' octagon box, ceiling tile surface, single gang box
  • Operating Voltage:  12-24 VAC/VDC
  • Current Draw: Standard, 4 mA w/ R option, 16 mA
  • Dimming Load: Sinks <20 mA; ~40 Ballasts @ .5 mA each
  • Recommended Power Pack: PP20
