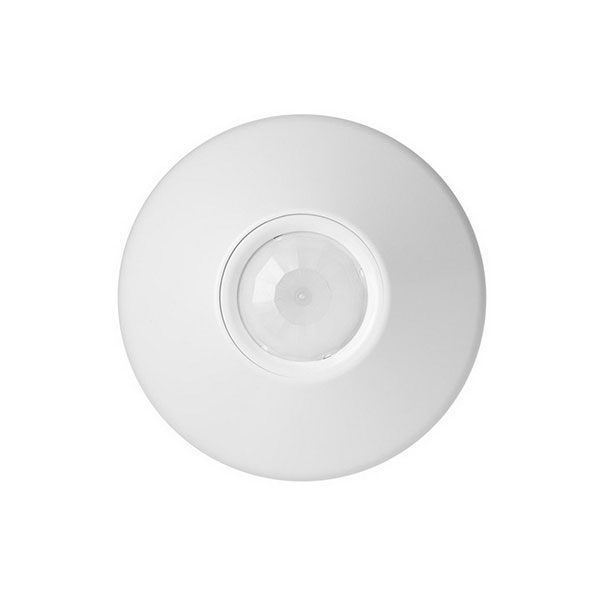

CMR 9 – 360° CEILING MOUNT SENSOR SINGLE RELAY

Call for Price

STANDARD RANGE 360° CEILING MOUNT SENSOR SINGLE RELAY FROM SENSOR SWITCH

Clear
SKU: N/A Categories: , , Tags: ,

  • Description
  • Specs
  • Manuals
  • Reviews (0)
  • NON VERIFIED

Description

The CMR 9 Series Standard Range 360° occupancy sensor incorporates Passive Infrared (PIR) detection
technology into an attractive line powered occupancy sensor that provides amazing sensitivity to
small motions (e.g. hand movements) and excellent payback. The CMR 9 is an economical solution for
providing automatic lighting control where a wall switch replacement sensor is not applicable. With
an integrated line switching relay, the CMR 9 is perfect for applications where locating a power
pack is difficult, such as retrofitting rooms with concrete or inaccessible ceilings.

FEATURES:

  • Push-button programmable
  • Adjustable time delays
  • Multiple operating modes
  • No field calibration or sensitivity adjustments required
  • No minimum load requirements

PDF BUTTONCMR SPEC SHEET

Specifications:

  • Size:  4.55" diameter and 1.55" deep
  • Mounting: 3.5" octagon box, ceiling tile surface, single gang box
  • Maximum Load(per pole): 800W @ 120 VAC, 1200W @ 277 VAC, 1500W @ 347 VAC
  • Motor Load:  1/4 HP
  • Dimming Load:   Sinks <20 mA; ~40 Ballasts @ .5 mA each
