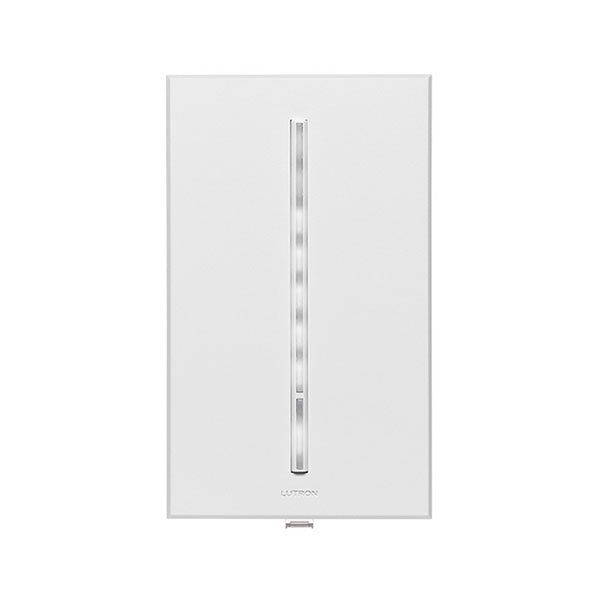

RRT-G25LW – RadioRA 2 ARCHITECTURAL RF GRAFIK T CL DIMMER

Description

This is the RadioRA 2 architectural RF GRAFIK T CL dimmer. RadioRA® 2 architectural RF GRAFIK T local controls function much like standard dimmers or switches, but can be operated as part of a lighting control system. GRAFIK T controls are useful in locations where single circuits of lighting need to be dimmed or switched. All Dimmers, Switches, and Accessories GRAFIK T dimmers and switches contain an Advanced Programming Mode (APM) that allows users to customize the control to meet their specific needs.

All Dimmers, Switches, and Accessories

The RadioRA 2 architectural RF GRAFIK T CL dimmer contains an Advanced Programming Mode (APM) that allows users to customize the control to meet their specific needs.

Available advanced features include:

• High-end Trim: Adjust the maximum light level of the load.
• Low-end Trim: Adjust the minimum light level of the load.
• LED Brightness: Select between high and low brightness of the control LED.
• Sound On/Off: Enable or disable audible clicking feedback.
• Delayed Fade-to-Off: Adjust the waiting period upon fade-to-off.
• Toggle Fade Rate Adjust: Adjust the fade rate upon toggling.
• Protected Preset Adjust: Select between locked and unlocked presets.

Check out the RadioRA 2 products page here.

• Controls include dimmers, switches, and companion devices.
• Simple touch control.
• Distinctive architectural aesthetic.
• Softly lit white LEDs indicate light level and coordinate with any décor.
• Advanced microprocessor dimming technology for control of dimmable LED lamps.
• Low-end and high-end trim are available for improved LED dimming performance (dimmer only).
• Optional neutral connection available for superior LED dimming performance (C•L® dimmer only).
• Phase selectable technology allows forward or reverse phase dimming for compatibility with more load types.
• Installs in single-pole or multi-location applications. Companion devices are available for multi-location control with dimmers and switches (maximum 4 companion devices per dimmer or switch, 1 main control per circuit).
• Use Lutron® GRAFIK TTM wallplates (sold separately).
• Lutron® GRAFIK TTM wallplates snap on with no visible means of attachment.

 RadioRA 2 Architectural RF GRAFIK T Local Controls Spec Sheet

Specifications:

• Clear Connect® RF Technology
• 250 W Dimmable LED
• 600 W Incandescent/Halogen
• 400 VA (300 W) Magnetic Low-Voltage with Halogen based lamps
• 3 A (400 VA) Dimmable Fluorescent
• 3 A (400 W) Hi-lume® 1% 2-wire LED driver (10 driver maximum)
• Neutral connection available
• Multi-location dimmer
