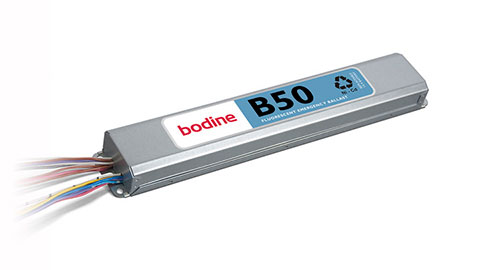

Bodine B50 Emergency Ballast

Description

Bodine B50 Emergency Ballast battery backup ballast for linear fluorescent lamps. This ballast is low profile and compatible with one or two T5 or T8 lamps, 120-277V. Lumen output up to 1600 lumens. Compatible with TLED lamps (see specs for compatibility).

UL Listed for US and Canada
Factory or Field Installation
(Indoor and Damp)

Illumination Time
90 Minutes

Initial Light Output
Up to 1600 Lumens

Full Warranty
5 Years (NOT pro-rata)

Universal Input Voltage
120 Through 277 VAC, 50 or 60 Hz
AC Input Current
60 mA

AC Input Power Rating
5.0 Watts

Test Switch
2W-ITS (2-wire Illuminated Test Switch)
Battery
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery
7- to 10-Year Life Expectancy

Battery Charging Current
180 mA

Recharge Time
24 Hours

Charging Indicator Light
LED

Temperature Rating (Ambient)
0°C to +50°C (32°F to 122°F)

Dimensions
13.31” x 2.2” x 1.18”
(338.1 mm x 55.88 mm x 29.97 mm)
Mounting Center 12.8” (325 mm)

Weight
2.7 lbs. (1.26 kg)

Model B50 is warranted for five (5) full years from date of purchase. Please see detailed warranty information on the Signify official website.
