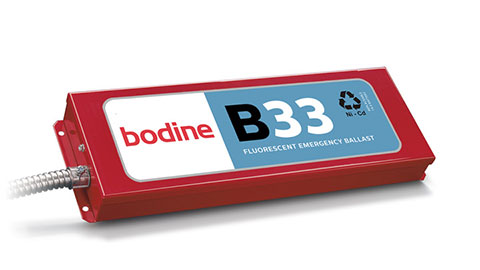

Bodine B33 Emergency Ballast

Bodine B33 Emergency Ballast Specification Grade 3-Lamp Parallel Emergency Illumination Up to 3400 Lumen Output. Operates three 32W T8 4′ lamps in parallel.

  • Description
  • Specs
  • Instructions
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

Bodine B33 Emergency Ballast. The B33 emergency ballast works in conjunction with an INSTANT START, PARALLEL AC ballast to convert new or existing fluorescent fixtures into
emergency lighting. The emergency ballast consists of a nickel-cadmium battery, charger and electronic circuitry. Can be used with two or three 32 W (4’) T8 fluorescent lamps without integral starters. It is compatible ONLY with instant start Specification Grade 3-Lamp Parallel Emergency Illumination Up to 3400 Lumen Output. Operates three 32W T8 4′ lamps in parallel.

UL Listed
(UL924 Emergency Lighting Equipment)
Factory or Field Installation

Illumination Time
90 Minutes

Initial Light Output
2700 – 3400 Lumens

Full Warranty
5 Years (NOT pro-rata)
Dual Input Voltage
120/277 VAC, 60 Hz

AC Input Current
280 mA

AC Input Power Rating
8.0 Watts

Test Switch
Single Pole

Battery
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery
7- to 10-Year Life Expectancy

Battery Charging Current
280 mA

Recharge Time
24 Hours

Charging Indicator Light
LED

Temperature Rating (Ambient)
0°C to +50°C (41°F to 122°F)

Dimensions
16.3” x 5.5” x 1.7”
(414 mm x 138 mm x 44 mm)
2’ (610 mm) Flexible Conduit
Mounting Center 15.7” (400 mm)

Weight
8.7 lbs. (3.9 kg)
