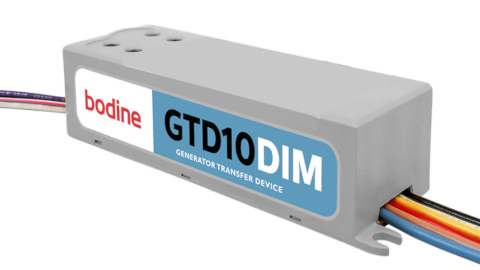

Bodine GTD10DIM Generator Device

Description

Bodine GTD10DIM Generator Device. Switch Bypass Device (Automatic Load Control Relay) 0-10 VDC dimmer override.
Up to 10A electronic ballast/driver rating. The GTD10DIM emergency lighting control device works in conjunction with an auxiliary generator or a central inverter system to power existing fluorescent or LED fixtures for egress lighting regardless of fixture wall switch position. The device consists of
relay switching circuitry and fusing in one compact case. The GTD10DIM bypasses the fixture wall switch, allowing the building’s generator (or central inverter) to bring on switchable fixtures.

Benefits

• Allows ON/OFF switching of generator supplied emergency lighting
• Energy cost savings benefits by eliminating constant night lighting
• LED rating – Up to 10A electronic ballast rating
• 0-10 VDC dimmer override

Specifications

UL LISTED for US and Canada
UL924 Emergency Lighting Compliant
Field Installation (Indoor and Damp)

Full Warranty
5 Years

Input Voltage
120 Through 277 VAC, 50/60 Hz

LED Lighting Load Rating
Up to 10A electronic ballast rating

Temperature Rating (Ambient)
-35 to 60 C (-30 to 140 F)

Relative Humidity Range
5 to 95%, (noncondensing)

Housing
UL accepted for use in Plenum, NEMA 1

Wire
16” 600V rated

Dimensions
4.5” x 1.675” x 1.32”
(114.3 mm x 42.5 mm x 33.5 mm)
Weight
0.43 lbs.

Application
