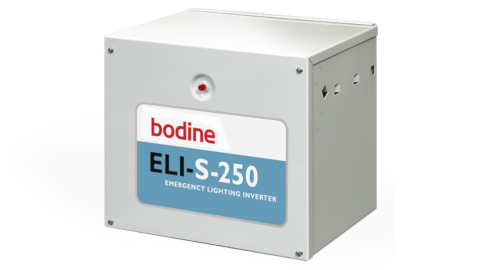

Bodine ELI-S-250 Emergency Lighting Inverter

Description

Bodine ELI-S-250 Emergency Lighting Inverter. Sinusoidal (Sine Wave) Output. 250 Watts Power Maximum. Automatic Output Voltage Select. Automatic Dimming (0 to 10V) of connected Load.

Benefits

• Automatic output voltage select
• Automatic dimming (0 to 10V) of connected load
• Removable/Replaceable electronics module
• Works with LED and fluorescent fixtures
• Ideal for (but not limited to) screw-base LED lamps
• Compatible with AC (line voltage) driven TLED lamps
• Remote-mounting up to 1,000 feet maximum

Specifications

UL Listed for US and Canada
Listed to UL924 and tested to CSA 22.2, No. 141
For Field Installation (Indoor and Damp)

Maximum Output Power
250 W into load PF +/- 0.90 (280 VA)

Maximum Connected Load Power
800 W*

Illumination Time
90 Minutes

AC Input Voltage
120 VAC, 60 Hz or 277 VAC, 60 Hz

AC Input Current, (battery charging)
1000 mA Max, 120Vac or
360 mA Max, 277Vac,

Battery: 2 ea. required
12V (nominal), 35Ah
Maintenance-Free Sealed Lead Acid Battery

Recharge Time
24 Hours
Charging Indicator Light / Test Switch
Integrated LED Test Switch

Output Voltage, Automatically Selected
120 VAC +/- 10%, or 277 VAC +/- 10%

Output Frequency
60 Hz, ± 5%

Transfer Time
2 to 5 seconds

Temperature Rating (Ambient)
68° F to 86° F (20° C to 30° C)

Dimensions
12.0″ H x 12.5″ W x 10.0″ D
(317mm x 305mm x 254mm)

Weight
Enclosure and Electronics only: 16 lbs. (7.26 Kg)
Batteries, 25 lbs. ea., Batteries total: 50 lbs. (22.6 Kg)

Warranty
5 Years (not including batteries)
3 Year Battery warranty, plus 7 years additional
pro-rating
