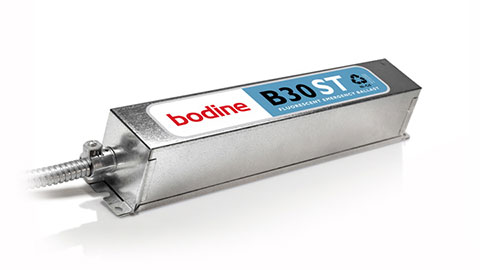

Bodine B30ST Emergency Ballast

Bodine B30ST Emergency Ballast is code compliant and compatible with linear fluorescent, compact fluorescent and Philips InstaFit LED lamps.

  • Description
  • Specs
  • instruction
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

Bodine B30ST Emergency Ballast is code compliant and compatible with linear or compact fluorescent lamps. Please see page two of the specs for a lamp compatibility chart. Automatic Code-Compliant Testing. High Lumen Output. AC/DC Output for T5 or T8 Lamps. Universal Input (120 through 27).

UL Listed For US and Canada
Factory or Field Installation
(Indoor and Damp)

Illumination Time
90 Minutes

Initial Light Output
900 – 3500 Lumens

Full Warranty
5 Years (NOT pro-rata)

Universal Input Voltage
120-277 VAC, 50/60 Hz

AC Input Current
110 mA

AC Input Power Rating
8.5 Watts

Test Switch/Charging Indicator Light
Two-Wire Illuminated Test Switch (2W-ITS)

Battery
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery
7- to 10-Year Life Expectancy

Battery Charging Current
280 mA

Recharge Time
24 Hours

Charging Indicator Light
LED

Temperature Rating (Ambient)
0°C to +50°C (32°F to 122°F)

Dimensions
16.6” x 2.8” x 2.85”
(422 mm x 71 mm x 73 mm)
2’ (610 mm) Flexible Conduit
Mounting Center 16.05” (408mm)

Weight
7.5 lbs. (3.41 kg)

Model B30ST is warranted for five (5) full years from date of purchase. Please see detailed warranty information on the Signify official website.

For other items like the Bodine B30ST Emergency Ballast click here.

For more information on Bodine’s line of lighting solutions click here.
