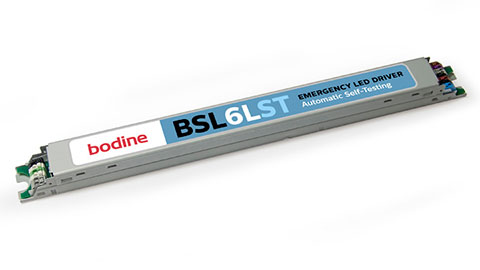

Bodine BSL6LST LED Emergency Driver

Description

Bodine BSL6LST Emergency LED Driver (6 Watts Output Power) New Compact Case Self-Testing Class 2 Output

Benefits

New compact design for space-limited linear LED applications.
• Smart Charger Technology for low energy consumption
• Meets Title 20 CEC (California Energy Commission) efficiency standards
• Automatic code-compliant testing
• Controlled power for predictable discharge
• Poke-In wiring connections for simplified installation
• RoHS Compliant

Specifications

UL Listed for US and Canada
Listed to UL924 and tested to CSA 22.2 No. 141
Field or Factory Installation (Indoor and Damp)
Output Class 2 Compliant

Illumination Time
90 Minutes

Initial Light Output
Up to 780 lumens*

Full Warranty
5 Years (NOT pro-rata)

Universal Input Voltage
120-277 VAC, 50/60 Hz

Output Voltage
15 – 54 VDC

Output Power
6.0 W initial (regulated)

Test Switch / Charging Indicator Light
Two-Wire Illuminated Test Switch (2W-ITS)**

Battery
High-Temperature, Maintenance-Free
Lithium Ion Battery
7- to 10-Year Life Expectancy

Recharge Time
24 Hours

Temperature Rating
Ambient : 0°C to +55°C (32°F to 131°F)
Case: Tc (max): 63°C

Dimensions
14.1” x 1.18” x 1.0” (358 mm x 30 mm x 25 mm)Mounting Center 13.78” (350 mm)
Weight
0.75 lbs. (0.34 kg)
