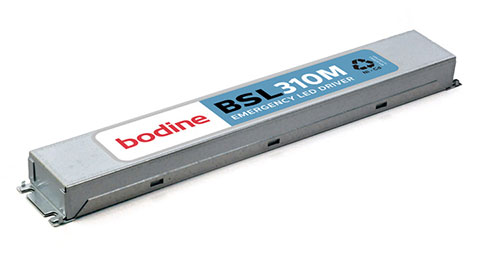

Bodine BSL310M LED Emergency Driver

Description

Bodine BSL310M LED Emergency Driver. Emergency LED driver. Listed for field installation. Class 2 output. 10 Watts output power.

Benefits:
• Listed for field or factory installation – UL 924 and CSA C22.2 No. 141.
Emergency Lighting Compliant.
• Smart Charger Technology for low energy consumption.
• Meets CEC Title 20 (California Energy Commission) efficiency standards.
• Class 2 output – UL 1310 Certified, CSA 22.2 No 223-M91 compliant.
• Emergency mode lumen output of up to 1300 lumens
• Universal input (120-277 VAC).
• 2 wire input helps reduce wiring errors.
• Compatible with a variety of LED strip manufacturers.
• Compatible with AC drivers and LED loads rated for Class 2.
• RoHS Compliant.

Specifications

UL Listed for US and Canada
Listed to UL924 and tested to CSA 22.2, No. 141
For Field or Factory Installation
(Indoor and Damp)

Illumination Time
90 Minutes

Full Warranty
5 Years (NOT pro-rata)

Universal Input Voltage
120-277 VAC, 50/60 Hz

AC Input Power Rating
4.0 W (Maximum)

Output Voltage
15-50 VDC

Output Power
10.4 W (Maximum)

Test Switch/Charging Indicator Light
Illuminated Test Switch

Battery
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery
7- to 10-Year Life Expectancy

Recharge Time
24 Hours

Temperature Rating (Ambient)
0°C to +55°C (32°F to 131°F)

Dimensions
15.34” x 2.25” x 1.16” (369 mm x 58 mm x 30 mm)
Mounting Center 15.0” (356 mm)
Weight
3.45 lbs. (1.56kg)

For other items like the Bodine BSL310M LED Emergency Driver click here.

For more information on Bodine’s line of lighting solutions click here.
