Bodine B4CF2P Emergency Ballast
Bodine B4CF2P Emergency Ballast can be used with one 13-42W or two parallel 13-26W twin, quad or triple-tube lamps. See specs for more configurations.
- Description
- Specs
- instruction
- Please visit literite.com for our new store!
- NON VERIFIED
Description
Bodine B4CF2P Emergency Ballast. The B4CF2P emergency ballast works in conjunction with an AC ballast to convert new
or existing fluorescent fixtures into emergency lighting. The emergency lighting equipment consists of a high-temperature nickel-cadmium battery, charger and electronic circuitry in
one compact case. Specification grade; one- or two- lamp parallel operation emergency illumination.
UL Listed
(UL 924 Emergency Lighting Equipment)
Factory or Field Installation (Damp)
Illumination Time
90 Minutes
Initial Light Output
Up to 925 Lumens @ 25°C
Full Warranty
5 Years (NOT pro-rata)
Dual Input Voltage
120/277 VAC, 60 Hz
AC Input Current
330 mA
AC Input Power Rating
4 Watts
Test Switch
Single Pole
Battery
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery
7- to 10-Year Life Expectancy
Battery Charging Current
220 mA
Recharge Time
36 Hours
Charging Indicator Light
LED
Temperature Rating (Ambient)
0°C to +50°C (32°F to +122°F)
Dimensions

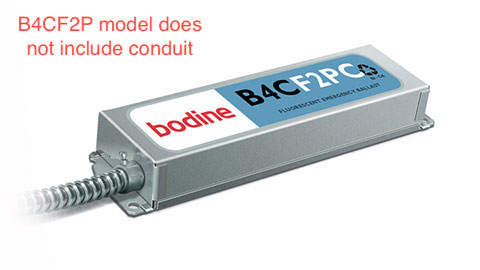

B4CF2P (Without Conduit)
9.4” x 2.6” x 1.5” (238 mm x 66 mm x 38 mm)
Mounting Center 8.9” (226 mm)
Weight
B4CF2P (Without Conduit) 3.1 lbs. (1.4 kg)
Model B4CF2P is warranted for five (5) full years from date of purchase. Please see detailed warranty information on the Signify official website.
