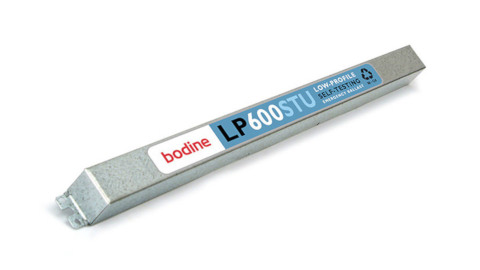

Bodine LP600STU Emergency Ballast

Description

Bodine LP600STU Emergency Ballast provides automatic code compliant testing and is compatible with HO T5 and T8 lamps. Low Profile for Space Limited Fixtures. 1300 Initial Lumen Output.

UL LISTED for US and Canada
Factory or Field Installation
(Indoor and Damp)

Illumination Time
90 Minutes

Initial Light Output
600 – 1325 Lumens @ 25°C

Full Warranty
5 Years (NOT pro-rata)

Universal Input Voltage
120 Through 277 VAC, 50 or 60 Hz

AC Input Current
55 mA

AC Input Power Rating
5.0 Watts

Test Switch / Charging Indicator Light
Two-Wire Illuminated Test Switch (2W-ITS)*
* The 2W-ITS is a Class 2 device.

Battery
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery
7- to 10-Year Life Expectancy

Battery Charging Current
150 mA

Recharge Time
24 Hours

Charging Indicator Light
LED

Temperature Rating (Ambient)
0°C to +50°C (32°F to 122°F)

Dimensions
21.5” x 1.18” x 1.18”
(546.1 mm x 30 mm x 30 mm)
Mounting Center 22.1” (561 mm)

Weight
3.3 lbs. (1.5 kg)

Model LP600STU is warranted for five (5) full years from date of purchase. Please see detailed warranty information on the Signify official website.

For other items like the Bodine LP600STU Emergency Ballast click here.

For more information on Bodine’s line of lighting solutions click here.

LP600STU - Bodine - Spec Sheet - Lite Rite Controls

LP600STU - Bodine - Instruction Sheet - Lite Rite Controls
